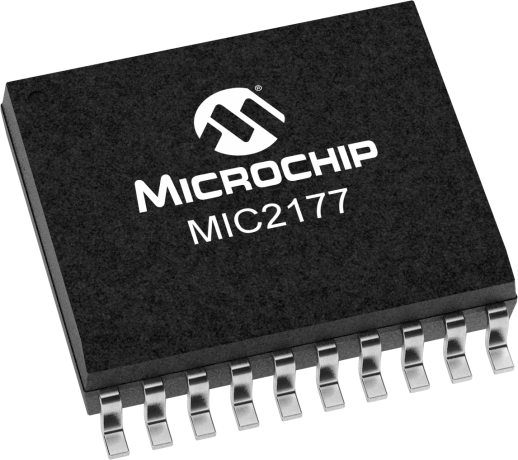

product primary image

MIC2177

2.5A 200kHz Synchronous Buck Regulator

Status: In Production

Features:

  • 4.5V to 16.5V input voltage range
  • Dual-mode operation for high efficiency (up to 96%)
  • PWM mode for > 200mA load current
  • Skip mode for < 200mA load current
  • 100 mΩ internal power MOSFETs at 12V input
  • 200kHz preset switching frequency
  • Low quiescent current
  • 1.0mA in PWM mode
  • 500µA in skip mode
  • < 5µA in shutdown mode
  • 100% duty cycle for low dropout operation
  • Current-mode control
  • Simplified loop compensation
  • Superior line regulation
  • Current limit
  • Thermal shutdown
  • Undervoltage lockout
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MIC2177 is a 200kHz synchronous buck (step-down) switching regulator designed for high-efficiency, battery-powered applications.

The MIC2177 operates from a 4.5V to 16.5V input and features internal power MOSFETs that can supply up to 2.5A output current. It can operate with a maximum duty cycle of 100% for use in low-dropout conditions. It also features a shut down mode that reduces quiescent current to less than 5µA.

The MIC2177 achieves high efficiency over a wide output current range by switching between PWM and skip mode. Operating mode is automatically selected according to output conditions. Switching frequency is preset to 200kHz and can be synchronized to an external clock signal of up to 300kHz.

The MIC2177 uses current-mode control with internal current sensing. Current-mode control provides superior line regulation and makes the regulator control loop easy to compensate. The output is protected with pulse-by-pulse current limiting and thermal shutdown. Undervoltage lockout turns the output off when the input voltage is less than 4.5V.

The MIC2177 is packaged in a 20-pin wide power SO package with an operating temperature range of -40°C to +85°C.

See the MIC2178 for externally selected PWM or skip-mode operation.

Additional Features
    • 4.5V to 16.5V input voltage range
    • Dual-mode operation for high efficiency (up to 96%)
      • PWM mode for > 200mA load current
      • Skip mode for < 200mA load current
    • 100 mΩ internal power MOSFETs at 12V input
    • 200kHz preset switching frequency
    • Low quiescent current
      • 1.0mA in PWM mode
      • 500µA in skip mode
      • < 5µA in shutdown mode
    • 100% duty cycle for low dropout operation
    • Current-mode control
      • Simplified loop compensation
      • Superior line regulation
    • Current limit
    • Thermal shutdown
    • Undervoltage lockout
Parametrics
Name
Value
Regulator Type
Step Down (Buck)
# of Outputs
1
Input Voltage Range Min (V)
4.5
Input Voltage Range Max (V)
16.5
Output Voltage Range Min (V)
1.245
Output Voltage Range Max (V)
16.5
Output Current (mA) max
2500
Quiescent Current (mA) typ
0.5
Switching Frequency (kHz)
200
Synchronous Rectifier
Yes
Operating Temp Range
-40 to 85
Vfb (V)
1.245
Duty Cycle Max (%)
1
SHUTDOWN Current (µA) (Typ)
1
Light Load Efficiency Mode
Yes

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC2177-5.0YWM
0.542000
0.973684
20
SOIC
.300in
Matte Tin
e3
MIC2177-5.0YWM-TR
0.542000
0.311875
20
SOIC
.300in
Matte Tin
e3
MIC2177YWM-TR
0.542000
0.311875
20
SOIC
.300in
Matte Tin
e3
MIC2177-3.3YWM
0.542000
0.973684
20
SOIC
.300in
Matte Tin
e3
MIC2177-3.3YWM-TR
0.542000
0.311875
20
SOIC
.300in
Matte Tin
e3
MIC2177YWM
0.542000
0.973684
20
SOIC
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
