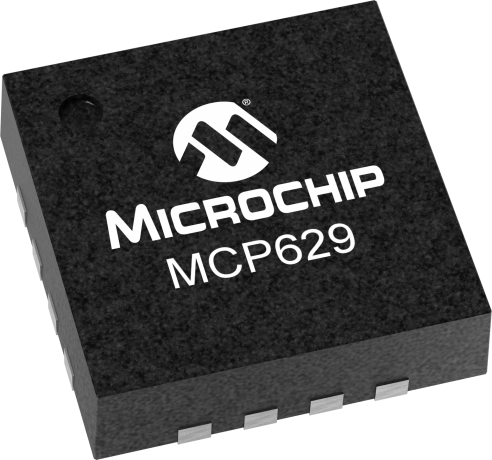

product primary image

MCP629

Status: In Production

Features:

  • mCal Technology: On chip self-calibration
  • 20MHz GBWP
  • High Output Drive Current
  • Rail-to-Rail Output
  • Two Chip Select/Calibration Pins
  • Small 16-pin 4x4 QFN Package
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP62x family of operational amplifiers feature low offset. At power-up, these op amps are self-calibrated using mCal. Some package options also provide a calibration/chip select pin that supports a low power mode of operation, with offset calibration at the time normal operation is re-started. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail. AEC-Q100 Grade 1 qualification is available for this device

Additional Features
    • mCal Technology: On chip self-calibration
    • 20MHz GBWP
    • High Output Drive Current
    • Rail-to-Rail Output
    • Two Chip Select/Calibration Pins
    • Small 16-pin 4x4 QFN Package
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
200
# per Package
4
Iq Typical (µA)
2500
Iq Max (µA)
3600
GBWP (kHz)
20000
Operating Voltage Range (V)
2.5 to 5.5
Device Description
Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))
13
PSRR Min (dB)
61
CMRR Min (dB)
65
Vos/Ta (uV/°C)
2
Ib (pA)
5
Aol (dB)
117
PM (deg)
60
Isc (mA)
70
Rail-to-Rail
Out
Unity Gain Stable
Yes
Slew Rate V/uS
10

Documents

Jump to:

Data Sheets

06/23/2015
2189KB

Brochures

Board Design Files


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP6292-H/MS
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
MCP6292T-H/MS
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP6291-E/MS
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
MCP6291T-E/MS
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP6292-E/MS
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
MCP6292T-E/MS
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP6292T-E/MSVAO
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP6295-E/MS
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
MCP6295T-E/MS
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP6293T-E/MS
0.025600
0.215600
8
MSOP
3x3mm
Matte Tin
e3
MCP6293-E/MS
0.025600
0.070000
8
MSOP
3x3mm
Matte Tin
e3
MCP629-E/ML
0.041700
0.076923
16
QFN
4x4x0.9mm
Matte Tin
e3
MCP629T-E/ML
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
MCP6294-E/ST
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6294-E/STVAO
0.060000
0.125000
14
TSSOP
4.4mm
Matte Tin
e3
MCP6294T-E/ST
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6294T-E/STVAO
0.060000
0.246800
14
TSSOP
4.4mm
Matte Tin
e3
MCP6291-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6291T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6292-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6292-E/SNVAO
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6292T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6292T-E/SNVAO
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6293-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6293T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6295-E/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6295T-E/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6294-E/SL
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6294-E/SLVAO
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6294T-E/SL
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6294T-E/SLVAO
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
MCP6291RT-E/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP6291T-E/OT
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP6291T-E/OTVAO
0.016000
0.049000
5
SOT-23
-
Matte Tin
e3
MCP6293T-E/CH
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
MCP6291-E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
MCP6292-E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
MCP6293-E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
MCP6294-E/P
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
MCP6295-E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
