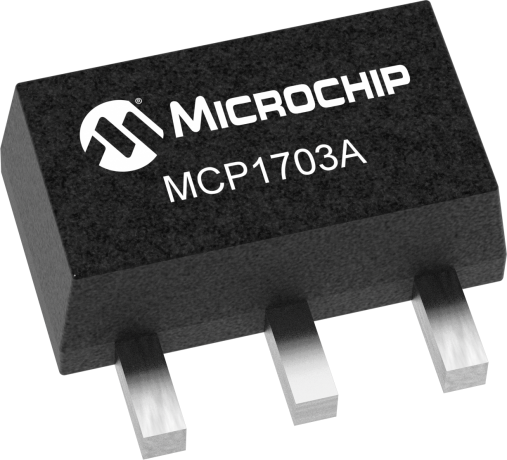

product primary image

MCP1703A

Low Iq, high voltage 250mA LDO

Status: In Production

Features:

  • 2.0 µA Quiescent Current (Typical)
  • Wide Input Operating Voltage Range: 2.7V to 16.0V
  • Low Dropout Voltage - Typically 750 mV or Less at 250mA Output Current
  • High 250 mA Output Current for Output Voltages = 2.5V, Up to 230 mA Output Current for Output Voltages < 2.5V (Input Voltage Dependent)
  • High Output Voltage Accuracy - 0.4% (Typical)
  • Output Voltage Range 1.2V to 5.5V in 0.1V Increments (50 mV Increments Available Upon Request)
  • Stable with 1.0 µF to 22 µF Output Capacitors
  • Short-Circuit Protection
  • Overtemperature Protection
  • Reduced Ground Current During Dropout
  • Multiple Package Options: 3-Pin SOT-23A, 3-Pin SOT-89,3-Pin TO-92, and 2x3 DFN-8
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP1703A is a CMOS, low dropout voltage regulator with 250 mA maximum output current. MCP1703A works with input voltages up to 16V and with its low 2 µA current consumption it is an ideal solution for applications using multi-cell, 9V alkaline or one-, two- or three- cell lithium-ion batteries. It is available in space efficient SOT23A and SOT89 packages; or in a thermally capable 3-pin SOT223 and 8-pin 2x3 DFN.

Additional Features
    • 2.0 µA Quiescent Current (Typical)
    • Wide Input Operating Voltage Range: 2.7V to 16.0V
    • Low Dropout Voltage - Typically 750 mV or Less at 250mA Output Current
    • High 250 mA Output Current for Output Voltages = 2.5V, Up to 230 mA Output Current for Output Voltages < 2.5V (Input Voltage Dependent)
    • High Output Voltage Accuracy - 0.4% (Typical)
    • Output Voltage Range 1.2V to 5.5V in 0.1V Increments (50 mV Increments Available Upon Request)
    • Stable with 1.0 µF to 22 µF Output Capacitors
    • Short-Circuit Protection
    • Overtemperature Protection
    • Reduced Ground Current During Dropout
    • Multiple Package Options: 3-Pin SOT-23A, 3-Pin SOT-89,3-Pin TO-92, and 2x3 DFN-8
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
250
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
250
VIN Min (V)
2.7
VIN Max (V)
16
VOUT (V)
1.2, 1.5, 1.8, 2.5, 2.8, 3.0, 3.3, 4.0, 5.0
Voltage Drop Typ (mV)
625
IGND Typ (µA)
2
Tol Typ %
±0.4
PSRR 1 kHz (dB)
35
Soft Start Pin
Load Dump
Rev Bat
Reverse Current Protect

Documents

Jump to:

Data Sheet

09/04/2013
2290KB

Software Library

Development Environment

  • Software Libraries
Software Libraries
Analog Simulation - MCP1703A

The MCP1703A is a CMOS, low dropout voltage regulator with 250 mA maximum output current. MCP1703A works with input voltages up to 16V and with its low 2 µA current consumption it is an ideal...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP1703AT-1202E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703A-2502E/MC
0.015600
0.033333
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703A-3302E/MC
0.015600
0.033333
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703A-5002E/MC
0.015600
0.033333
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-5002E/MCVAO
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703A-1202E/MC
0.015600
0.033333
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703A-1502E/MC
0.015600
0.033333
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703A-1802E/MC
0.015600
0.033333
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703A-2802E/MC
0.015600
0.033333
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703A-3002E/MC
0.015600
0.033333
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703A-4002E/MC
0.015600
0.033333
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-1202E/MC
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-1502E/MC
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-1802E/MC
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-2502E/MC
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-2502E/MCVAO
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-2802E/MC
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-3002E/MC
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-4002E/MC
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-5002E/MC
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-3302E/MC
0.015600
0.130606
8
DFN
2x3x0.9mm
Matte Tin
e3
MCP1703AT-1202E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-1502E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-1802E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-2052E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-2502E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-2802E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-3002E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-3072E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-3302E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-4002E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-4102E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-5002E/MB
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703AT-3302E/MBVAO
0.051800
0.132000
3
SOT-89
-
Matte Tin
e3
MCP1703A-1202E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-1502E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-1802E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-2052E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-2502E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-2802E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-3002E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-3072E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-3302E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-4002E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-4102E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-5002E/DB
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703A-5002E/DBVAO
0.115700
0.217949
3
SOT-223
-
Matte Tin
e3
MCP1703AT-1202E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-1502E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-1802E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-2052E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-2502E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-2802E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-3002E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-3072E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-3301E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-3302E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-3302E/DBVAO
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-4002E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-4102E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-5002E/DB
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-5002E/DBVAO
0.115700
0.219250
3
SOT-223
-
Matte Tin
e3
MCP1703AT-1502E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-2052E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-2102E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-2502E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-2802E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-3002E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-3152E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-3302E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-3302E/CBVAO
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-3502E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-4002E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-5001E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-5002E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-5002E/CBVAO
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
MCP1703AT-1802E/CB
0.014900
0.042667
3
SOT-23A
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
