The miSLIC™ Series Subscriber Line Interface Circuit together with a VoIP processor or SoC, provides an economical turn-key solution for derived voice applications. The miSLIC device is controlled by a VoIP processor or SoC through a simple, single serial interface. The dual channel Le9652 miSLIC device uses individual Tracking power supplies capable of ringing up to 140 Vpk with high efficiency to minimize power dissipation in all states. Ringing and system power management are supported to limit the peak power requirements of the telephone line FXS port. The Le9652 features wideband clarity and complete BORSCHT functionality. Manufacturing test and subscriber line testing are standard features. All AC, DC, and power parameters are programmable making the Le9652 device suitable for any application requiring SLIC functionality.

• Economical, fifth generation line interface solution for VoIP processors and SoCs

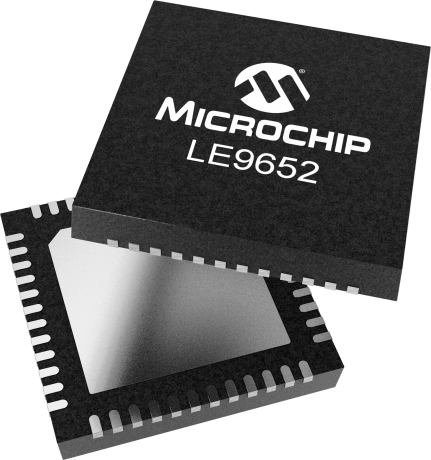

• 48-pin 7x7 mm QFN package
• Dual Channel Architecture
• Single port 4-wire interface control (ZSI)
• Compatible with numerous VoIP processors and SoC solutions
• Less expensive isolation than multi-port control
• Simplifies board routing
• VoicePath SDK and VP-API-II software available to implement FXS functions
• VeriVoice Professional Test Suite Software
• Comprehensive subscriber loop testing, including Telcordia GR-909-CORE / TIA-1063 diagnostic testing
• Industry leading advanced test software
• VeriVoice Manufacturing Test (VVMT) Package
• Facilitates factory testing and calibration of assembled boards
• High Voltage Tracking Ringing Capability
• Minimized power dissipation in all states
• 5 REN
• Up to 140 Vpk internal ringing with programmable DC offset
• Adaptive ringing power management
• Integrated Power Management
• Switching power supply tracks line voltage minimizing active and ringing power dissipation
• Low cost, 2-Layer PCB reference designs
• Complete wideband BORSCHT functionality
• Worldwide programmability
• Per channel narrowband or wideband operation
