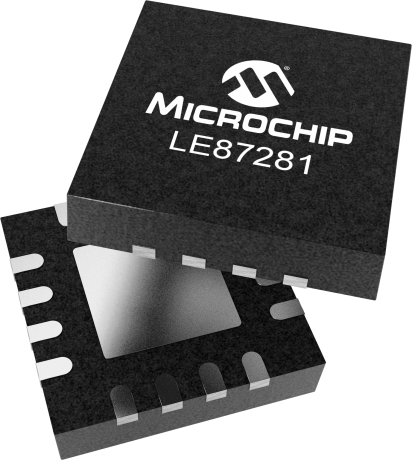

product primary image

LE87281

G.Fast Single Channel Line Driver

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Le87281 is a single channel differential amplifier designed to drive G.Fast transmission signals as well as VDSL2 and ADSL2+ signals with very low power dissipation. The Le87281 contains a pair of wideband amplifiers designed with Microchip’s HV15 Bipolar SOI process for low power consumption. The line driver gain is fixed internally. The amplifiers are powered from a single supply. The device can be programmed to one-of-three preset Bias levels or to impedance controlled Disable or Standby states. The control pins respond to input levels that can be generated with a standard tri-state GPIO.

Additional Features
  • Supports high frequency G.Fast transmission
  • Supports VDSL2 and ADSL2+ operation
  • Very low power dissipation
    • Class AB operation
  • 5 programmable states
  • No external gain resistors required
  • Small footprint package
    • 16-pin (4 mm x 4 mm) QFN
  • RoHS compliant
Parametrics
Name
Value
Application
G.Fast 106MHz
Series
G.fast
Loop Length
Short
Signal Power (dBm)
8
Number of Ports
1

Documents

Jump to:

Data Sheets


626KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE87281NQC
0.044300
0.734694
16
VQFN
4x4x1mm
Matte Tin
e3
LE87281NQCT
0.044300
0.234000
16
VQFN
4x4x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
