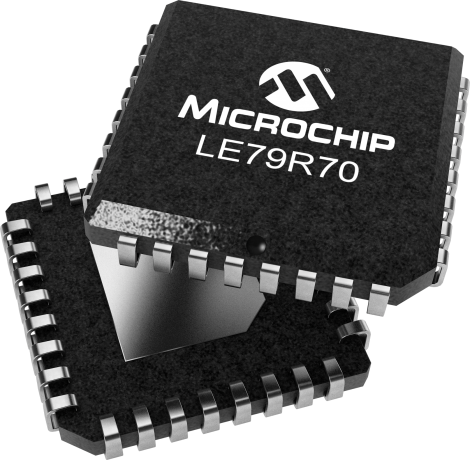

LE79R70

Ringing SLIC

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Le79R70 is a bipolar monolithic SLIC device that support integrated (on-chip) ringing, pin-for-pin compatibility and flexibility for varying loop lengths. With the Ringing SLIC, you can achieve significant system-level cost reductions while designing innovative linecard solutions.

Additional Features
  • Ideal for ISDN-TA and set top applications
  • On-chip ringing with on-chip ring-trip detector
  • Low Standby state power
  • Battery operation:
    • VBAT1: -40 V to -67 V
    • VBAT2: -19 V to VBAT1
  • On-chip battery switching and feed selection
  • On-hook transmission
  • Polarity reversal option
  • Programmable constant-current feed
  • Programmable open circuit voltage
  • Programmable loop-detect threshold
  • Two-wire impedance set by single component
  • Ground-key detector
  • Tip Open state for ground-start lines
  • Internal VEE regulator (no external -5 V power supply required)
  • Two on-chip relay drivers and snubber circuits
Parametrics
Name
Value
Application
PBX
Series
VE580
Loop Length
Short
Battery Topology
External
Output Voltage (V) max
67
Number of Ports
1

Documents

Jump to:

Data Sheets


621KB

Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE79R70-1FQC
0.144200
1.353846
32
VQFN
8x8xmm
Matte Tin
e3
LE79R70-1DJC
1.103500
2.233333
32
PLCC
-
Matte Tin
e3
LE79R70-1DJCT
1.103500
2.293333
32
PLCC
-
Matte Tin
e3
LE79R70DJC
1.103500
2.233333
32
PLCC
-
Matte Tin
e3
LE79R70DJCT
1.103500
2.293333
32
PLCC
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
