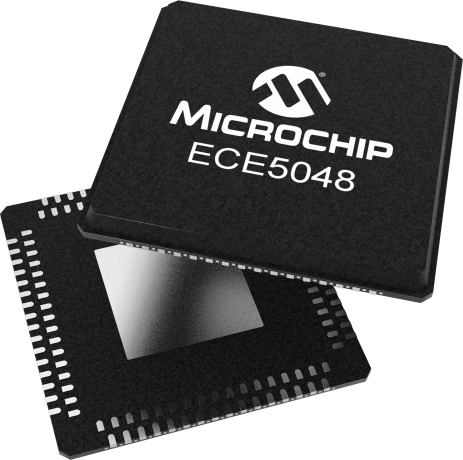

product primary image

ECE5048

Super I/O Controller

Status: In Production

Features:

  • LPC Interface
  • 132 DFQN Package
  • 3.3V Operating Voltage
  • 101 GPIO Pins
  • BC-LinkTM
  • Clock Run Support
  • Secure PortSwitchTM Interface
  • 16550A-Compatible UART serial port
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The ECE5048 is an advanced I/O SMSC BC-LinkTM Companion. It has an LPC Interface with Clock Run Support as well as Secure PortSwitchTM Interface with a Hot Plug LPC Docking Interface and a high-speed 16550A-Compatible UART serial port. In sleep mode, the ECE5048 has a low standby current with one power plane.

Family parts
ECE5048-LZY

Additional Features
    • LPC Interface
    • 132 DFQN Package
    • 3.3V Operating Voltage
    • 101 GPIO Pins
    • BC-LinkTM
    • Clock Run Support
    • Secure PortSwitchTM Interface
    • 16550A-Compatible UART serial port
Parametrics
Name
Value
BC-Link
Yes
GPIO Pins
101
Operating Voltage
3.3V
Op Temp Max
70
Interface
LPC

Documents

Jump to:

Silicon Product

06/26/2014
0B

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K

$0.62
$0.67
$1.35
$0.89
$2.79


$7.28
$9.62
$5.35
$5.78
$8.65
$5.56
$2.30
$5.07
$1.35
$1.80
$2.44
$4.99

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ECE5048-LZY
0.102000
1.964286
132
DQFN
11x11x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
