Status: In Production

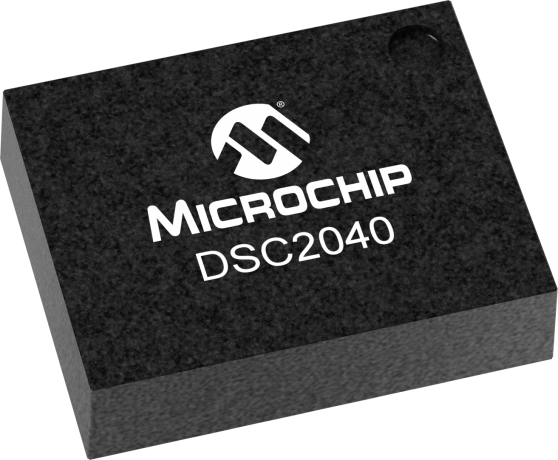

The DSC2040 series of high performance dual output oscillators utilize a proven silicon MEMS technology to provide excellent jitter and stability while incorporating additional device functionality. The two outputs are controlled by separate supply voltages to allow for high output isolation. The frequencies of the outputs can be identical or independently derived from a common PLL frequency source. The DSC2040 has provision for up to eight user-defined preprogrammed, pin-selectable output frequency combinations.DSC2040 is packaged in a 14-pin 3.2mm x 2.5mm QFN package and available in temperature grades from Ext. Commercial to Industrial.
Development tools data is currently unavailable.
Rohs data is currently unavailable.
For pricing and availability, contact Microchip Local Sales.
