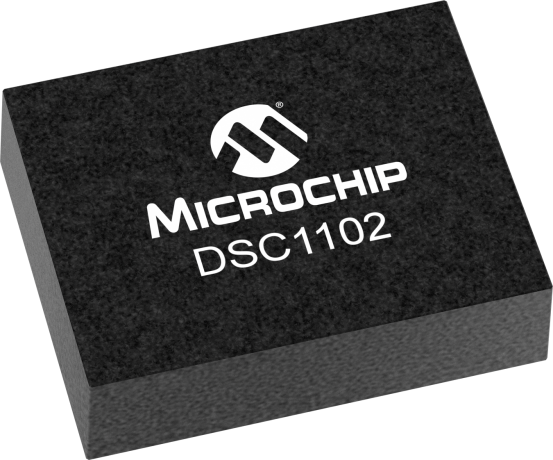

product primary image

DSC1102

Status: In Production

Features:

  • Low RMS Phase Jitter: <1 ps (typ.)
  • High Stability: ±10, ±25, ±50 ppm
  • Industrial: -40°C to 85°C
  • Ext. commercial: -20°C to 70°C
  • High Supply Noise Rejection: -50dBc
  • Short Lead Time: 2 Weeks
  • Wide Freq. Range: 2.3 to 460MHz
  • 2.5mm x 2.0mm, 3.2mm x 2.5mm, 5.0mm x 3.2mm, & 7.0mm x 5.0mm
  • Qualified to MIL-STD-883
  • 20x better MTF than quartz oscillators
  • Low Current Consumption
  • Supply Range of 2.25V to 3.6V
  • Standby & Output Enable Function
  • Lead Free & RoHS Compliant
  • LVDS & HCSL Versions Available
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The DSC1102 & DSC1122 series of high performance oscillators utilizes a proven silicon MEMS technology to provide excellent jitter and stability over a wide range of supply voltages and temperatures. By eliminating the need for quartz or SAW technology, MEMS oscillators significantly enhance reliability and accelerate product development, while meeting stringent clock performance criteria for a variety of communications, storage, and networking applications.DSC1102 has a standby feature allowing it to completely power-down when EN pin is pulled low; whereas for DSC1122, only the outputs are disabled when EN is low. Both oscillators are available in industry standard packages, including the small 2.5mm x 2.0mm, and are “drop-in” replacements for standard 6-pin LVPECL quartz crystal oscillators.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.

Additional Features
    • Low RMS Phase Jitter: <1 ps (typ.)
    • High Stability: ±10, ±25, ±50 ppm
    • Wide Temperature Range
      • Industrial: -40°C to 85°C
      • Ext. commercial: -20°C to 70°C
    • High Supply Noise Rejection: -50dBc
    • Short Lead Time: 2 Weeks
    • Wide Freq. Range: 2.3 to 460MHz
    • Small Industry Standard Footprints
      • 2.5mm x 2.0mm, 3.2mm x 2.5mm, 5.0mm x 3.2mm, & 7.0mm x 5.0mm
    • Excellent Shock & Vibration Immunity
      • Qualified to MIL-STD-883
    • High Reliability
      • 20x better MTF than quartz oscillators
    • Low Current Consumption
    • Supply Range of 2.25V to 3.6V
    • Standby & Output Enable Function
    • Lead Free & RoHS Compliant
    • LVDS & HCSL Versions Available
Parametrics
Name
Value
Sub Group 1
Low Jitter Oscillators
Supply Voltage (V)
2.25 - 3.6
Output Frequency Min (MHz)
2.3
Output Frequency Max (MHz)
460
# of Outputs
1
Phase Jitter
<1ps
Typ Jitter (1#875-20MHz)
1.7ps
Output Logic
LVPECL

Documents

Jump to:

Data Sheets

Supporting Collateral


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DSC1102AI1-156.2500T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI2-156.2500T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI2-156.2540T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI2-167.3320T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102DI1-156.2500T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DI2-125.0000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DI2-156.2500T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DI5-135.0000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102NI5-156.2500T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI2-106.0000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI2-106.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI5-160.0000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI5-160.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE1-125.0000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE1-125.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE1-148.5000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE1-148.5000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE5-412.5000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI1-100.0000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI1-156.2500
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI2-156.2500
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI2-156.2540
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI2-167.3320
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102DI1-156.2500
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DI2-125.0000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DI2-156.2500
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DI5-135.0000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102NE1-125.0000
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102NE1-125.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102NE1-148.5000
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102NE1-148.5000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102NI5-156.2500
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI5-400.0000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI5-400.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102NI5-400.0000
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102NI5-400.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI5-156.2500
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AI5-156.2500T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE5-416.0000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE5-416.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE2-155.5200
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE2-155.5200T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE2-400.0000
0.082300
0.172300
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102AE2-400.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102NI5-200.0000
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102NI5-200.0000T
0.082300
0.200000
6
VDFN
7x5x0.9mm
NiPdAu
e4
DSC1102DI1-212.5000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DI1-212.5000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DL1-212.5000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DL1-212.5000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DI2-212.5000
0.012500
0.028607
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102DI2-212.5000T
0.012500
0.080000
6
VDFN
2.0x2.5mm
NiPdAu
e4
DSC1102BE2-200.0000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BE2-312.5000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BE2-312.5000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI1-010.0000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI1-010.0000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI1-100.0000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI1-100.0000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-100.0000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-100.0000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-114.2850
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-114.2850T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-125.0000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-125.0000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-153.6000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-153.6000T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-155.2500
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-155.2500T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-155.5200
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-155.5200T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-156.2500
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI2-156.2500T
0.040500
0.120000
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102BI5-108.0000
0.040500
0.078264
6
VDFN
3.2x5.0x0.9mm
NiPdAu
e4
DSC1102CI1-025.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-025.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-050.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-050.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-125.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-125.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-135.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-135.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-156.2500
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-156.2500T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI2-148.5000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI2-148.5000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI2-156.2500
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI2-156.2500T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI2-400.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI2-400.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-025.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-040.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-062.5000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-150.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-150.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-156.2500
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-156.2500T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-200.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-200.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-020.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI5-020.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-108.0000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-108.0000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-212.5000
0.019500
0.042664
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
DSC1102CI1-212.5000T
0.019500
0.090000
6
VDFN
3.2x2.5x0.9mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.

Buy from the Microchip Store

Grid
View
Table
View
Filter:
Apply
Clear
Only show products with samples
Product
Leads
Package Type
Temp Range
Packing Media
5K Pricing
Buy
