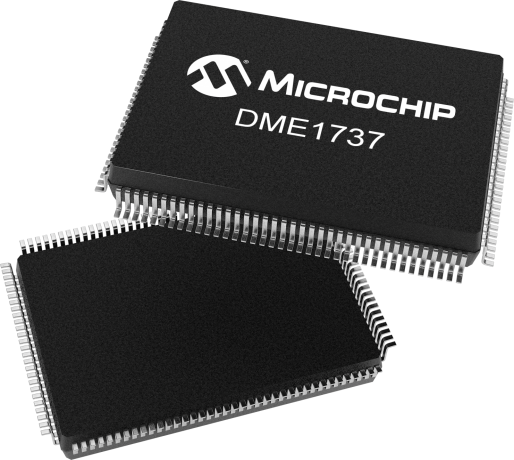

product primary image

DME1737

Super I/O Controller

Status: Not Recommended for new designs

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The DME1737 is a 3.3V (Super I/O Block is 5V tolerant) PC99/PC2001 compliant Super I/O controller with an LPC interface. Hardware Monitoring capabilities, enhanced Security features, Power Control logic and Motherboard Glue logic are included.

There are four analog inputs for monitoring external voltages of +5V, +5VTR, +12V and Vccp (core processor voltage), as well as internal monitoring of the SIO's VCC, VTR, and Vbat power supplies.

The true CMOS 765B core provides 100% compatibility with IBM PC/XTTM and PC/ATTM architectures and is software and register compatible with SMSC's proprietary 82077AA core. DME1737 is ACPI 1.0/2.0 compatible and therefore supports multiple low power-down modes. It incorporates sophisticated power control circuitry (PCC), which includes support for keyboard and mouse wake-up events.

Family parts
DME1737-NW

Additional Features
  • 8042 Keyboard
  • 128 QFP Package
  • 3.3V Operating Voltage
  • 25 GPIO
  • 1 PS/2 Port
  • SMBus
  • LPC Interface
  • Parallel port with IEEE 1284, EPP, and ECP compatibility
  • 1 16C550A compatible UART port
  • 1 IrDA 1.0 Infrared Port
  • CMOS 765B Floppy disk controller
  • Legacy I/O Functionality
  • ACPI 1.0/2.0 Compatible
  • Supports ISA Plug-and-Play Standard Register Set (Version 1.0a)
  • Motherboard Glue Logic
  • Monitor two external temperatures via thermal diode inputs and an internal sensor (measures ambient temperature)
  • Hardware monitoring capabilities: temperature, voltage and fan speed monitoring. It can alert the system to out-of-limit conditions and automatically control the speeds of multiple fans.
Parametrics
Name
Value
Parallel Port
Yes
GPIO Pins
25
PS/2 Ports
1
Operating Voltage
3.3V
Op Temp Max
70
SM Bus
Yes
Interface
LPC

Documents

Jump to:

Silicon Product

06/26/2014
0B

IBIS


Development tools data is currently unavailable.

Similar Devices

Product
Price 5K

$0.62
$0.67
$1.35
$0.89
$2.79


$7.28
$9.62
$5.35
$5.78
$8.65
$5.56
$2.30
$5.07
$1.35
$1.80
$2.44
$4.99

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
DME1737-NW
1.810000
3.181818
128
MQFP
14x20x2.7
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
