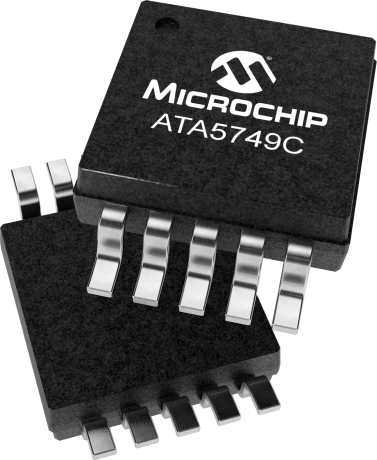

product primary image

ATA5749C

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

A fractional-N-PLL ASK/FSK transmitter device specifically targeted for tire pressure monitoring (TPM), remotekeyless entry, passive entry/go (PEG) and other automotive applications.The device operates at a frequency range of 300MHz to 450MHz at data rates up to 40kbit/s Manchester code with a typical 5.5dBm output power at 7.3mA. Transmitter parameters such as output power, output frequency, FSK deviation, and current consumption can be programmed using the SPI interface.The fully integrated device simplifies RF board design and lowers material costs.

Parametrics
Name
Value
Automotive Capable
Yes

Documents

Jump to:

Data Sheets

Brochures


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATA5749C-6DQY-64
0.023200
0.200000
10
MSOP
3x3mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
