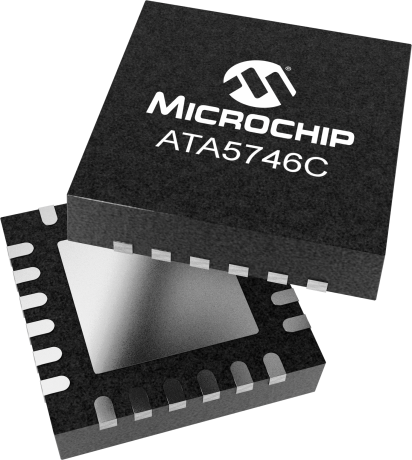

ATA5746C

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

A low power UHF ASK/FSK transparent receiver device in a small QFN24 package. The transmitting frequency range is 313- 317MHz band. The device combines the functions of remote keyless entry (RKE), a low bit rate ASK and tire pressure monitoring (TPM), a high bit rate FSK, into one receiver controled by an external microcontroller, such as an AVR® ATmega48. Works with PLL ATA5756 and ATA5757 transmitters. It supports Manchester bit rates of 1-10Kbits/s in ASK and 1-20Kbits/s in FSK mode with four selectable, discrete bit rate passbands. The receiver contains an RSSI output to indicate received signal strength and a SENSE input to select thresholds below which the DATA signal is gated off.

Parametrics
Name
Value
Temp# Range Min (deg C)
-40
Temp# Range Max (deg C)
105
Automotive Capable
Yes
Operating Voltage (Vcc)
2.7 to 3.3 or 4.5 to 5.5

Documents

Jump to:

Data Sheets

Brochures


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
ATA5746C-PXQW
0.067200
0.183333
24
VQFN
5x5x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
