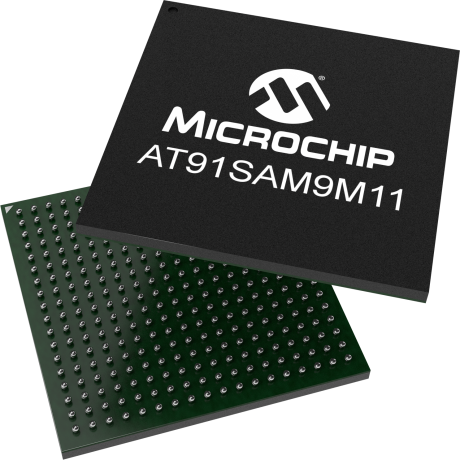

AT91SAM9M11

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Microchip's ARM®-based SAM9M11 is a 400MHz ARM926-based embedded microprocessor with video playback, hardware encryption, DDR2 and LPDDR support, wide range of connectivity and user interface peripherals, and dual external bus interface.

The hardware video decoder supports multiple formats (H264, H263, MPEG4, MPEG2, VC1) in resolutions up to WVGA or D1 at 30fps. It includes graphics acceleration, such as scaling, rotation, color conversion and picture-in-picture.

The hardware encryption engine features AES 256-, 192-, 128-bit key algorithms compliant with FIPS PUB 197 Specifications, TDES two-key or three-key algorithms compliant with FIPS PUB 46-3 Specifications, a SHA Secure Hash Algorithm (SHA1 and SHA256) compliant with FIPS Publication 180-2 and a TRNG compliant with NIST SP800-22 and Diehard Random Tests suite.

The multi-layer bus architecture associated with 36 DMA channels and 64KB of SRAM tcan be configured as TCM, and the dual bus interface sustains the high bandwidth required by the processor and its high-speed peripherals.

It features multiple communication interfaces such as high speed USB host and device with transceivers, 10/100 Mbps Ethernet controller and a high-speed SDIO/MMC interface. It also comes with an LCD controller supporting up to 1280x860 resolution, a resistive touchscreen controller and a camera interface. The I/Os support 3.3V. The SAM9M11 is available in a BGA324 package with 0.8mm ball pitch.

Parametrics
Name
Value
Part Family
SAM9GM
Core
ARM926
Max CPU Speed (MHz)
400
Core Voltage Range (V)
0.9 to 1.1
Vbat/Vddbu battery backup
Yes
Internal Oscillator
32KHz
SRAM (KB)
64
L1 Cache Memory (Instructions) (KB)
32
L1 Cache Memory (Data) (KB)
32
DRAM Interface
SDRAM/LPSDRAM/LPDDR/DDR2
DRAM Bus Size (Bits)
16
NAND Interface
Yes
ECC Bits on NAND Interface
1
Number of EBIs
2
SDIO/SD-CARD/eMMC
2
Direct Memory Access Channels
39
Max I/O Pins
160
Pincount
324
UART
5
ISO 7816
4
SPI
6
I2C
2
SSC
2
LIN
Yes
USB Device and Host Ports
1 HS
USB Host Only Ports
2 HS
10/100 Ethernet MAC
1
Graphics Controller/GPU
Yes
Graphic LCD
24-bit
Video Decoder
Yes
Camera Interface
Yes
Crypto Engine
Yes
ADC Input
8
Max ADC Resolution (bits)
10
Max ADC Sampling Rate (ksps)
440
Hardware RTCC/RTC
Yes
Watch Dog Timer
Yes
Max 16-Bit Digital Timers
6
Input Capture
6
Standalone Output Compare/Standard PWM
6
Temperature Range (C)
-40 to 85

Documents

Jump to:

Data Sheets

12/10/2016
5509KB

Board Design Files

Brochures

User Guides

07/07/2017
2229KB

Development Environment

  • Integrated Development Environments
  • Demo & Evaluation Boards
Integrated Development Environments
AT91SAM-ICE
SAM-ICE ( AT91SAM-ICE )

SAM-ICE is a JTAG emulator designed for SAMA5, SAM3, SAM4, SAM7 and SAM9 ARM® core-based MCUs and MPUs, including Thumb mode. It supports download speeds up to 720K Bytes per second and maximum JTAG speeds up to 12 MHZ. It also supports Serial Wire Debug (SWD) and Serial Wire Viewer (SWV) from SAM-ICE hardware V6.

The AT91SAM-ICE catalog part number (CPN) will be moving to End of

...

Learn More
DV164232
J-32 Debug Probe ( DV164232 )

The J-32 Debug Probe Debugger/Programmer provides affordable, fast and easy debugging and programming for Microchip’s PIC32 and SAM MCU and SAM MPU products. It is fully integrated into Microchip’s powerful MPLAB® X Integrated Development Environment and easy-to-use Integrated Programming Environment. Connecting existing hardware is simple as it keeps the

...

Learn More
Linux4SAM.org
Linux4SAM (Linux software and tools) ( Linux4SAM.org )

The Linux OS and Microchip’s microprocessors (MPUs) have gone hand in hand since 2002 when our first MPU, the AT91RM9200, was introduced. By supporting mainline Linux, you receive the full support of the open source community to create high-quality solutions. Microchip has been mainlining its kernel, bootloader and drivers since 2004, and mainlining has become a centerpiece of our Linux...

Learn More
SAM-BA In-system Programmer
SAM-BA In-system Programmer ( SAM-BA In-system Programmer )

Microchip SAM Boot Assistance (SAM-BA) software provides an open set of tools for in-system programming of Microchip ARM Thumb-based microcontrollers and microprocessors.

The latest generations of MPUs are support on SAM-BA v3 available on the SAM-BA github site.
For MCUs and legacy MPUs the latest versions of SAM-BA v2

...

Learn More
Software Package
Software Package ( Software Package )

Microchip’s software packages deliver a set of C-drivers that run on the evaluation kits and exercise all peripherals. The software packages are also very useful for board bring-up as well as quick prototyping.

The software packages consist of drivers, software services and libraries. For Microchip’s microprocessors, each software module is provided with full source code,

...

Learn More
Demo & Evaluation Boards
SAM9M10-G45-EK
SAM9M10-G45-EK ( AT91SAM9M10-G45-EK )

This kit lets designers quickly evaluate and develop code for applications running on the SAM9M10 or the SAM9G45. It is delivered with free packages for Android, Microsoft Windows and Linux to enable rapid application development.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT91SAM9M11B-CU
0.374300
1.571429
324
TFBGA
15x15x1.2mm
SAC105
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
