Part Number: TNKC001

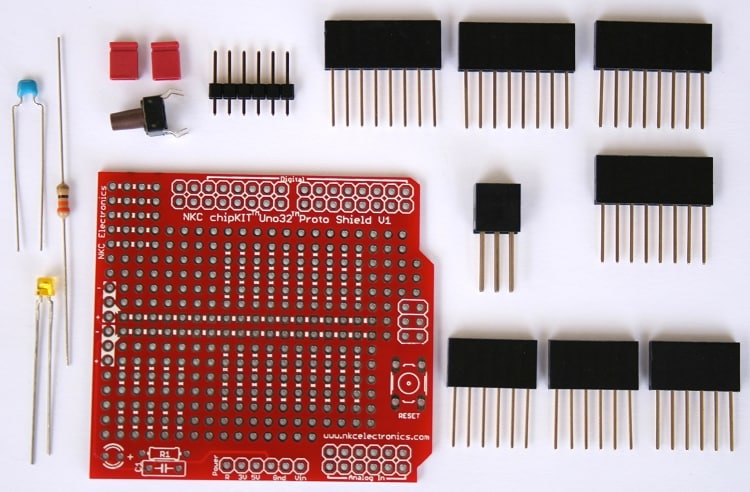

TNKC001 - PROTOSHIELD KIT FOR CHIPKIT UNO32

  • All Uno32 signals and power lines available with standard headers
  • Power indicator LED with resistor and filtering capacitor
  • Two power buses are jumper selectable (5V or GND)
  • DIP-oriented and general-purpose prototyping areas available
  • Multiple shields can be stacked on top of chipKIT Uno32

Overview

This Protoshield kit from NKC Electronics is a great way to expand your chipKIT™ Uno32™. Develop your custom circuits on a solder-less breadboard. Once the circuit is tested and ready, install it on a Protoshield for a permanent solution, and free up your breadboard for the next project. Basic soldering experience is required. (Note: breadboard and soldering iron are not included.)

Assembly instructions are available at https://chipkit.net/nkc-protoshield-kit-for-chipkit-uno32
