953-sr10db1
953-sr10db1

Part Number: SR10DB1

INDUCTORLESS SWITCHING POWER SUPPLY DEMOBOARD

Please download the user guide for more information.
View Purchasing Options
Contact Us

Overview

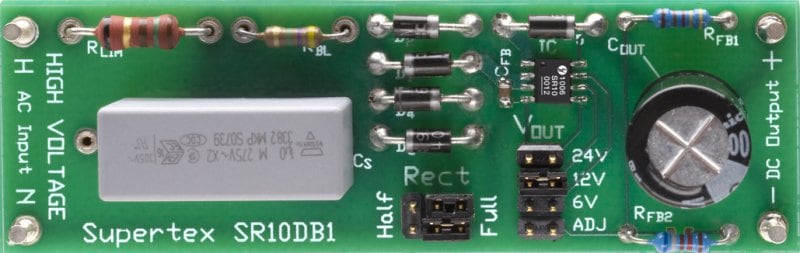

The SR10 is an inductorless switching power supply controller intended for operation directly from a rectified 120/240VAC line. Due to the capacitor-coupled, switched shunt topology (CCSS), it exhibits low standby power and good efficiency while employing no magnetics nor high voltage electrolytic capacitors. To meet a wide variety of applications, the SR10DB1 is highly configurable. Many components are socketed. Half or full-wave rectification is jumper-selectable. Output voltage is jumper-selectable to 3 fixed voltages or may be set anywhere in the range of 6 - 28V using an on-board feedback divider.
