957-hv257db2
957-hv257db2

Part Number: HV257DB2

HIGH VOLTAGE SAMPLE AND HOLD AMPLIFIER ARRAY

Please download the user guide for more information

Overview

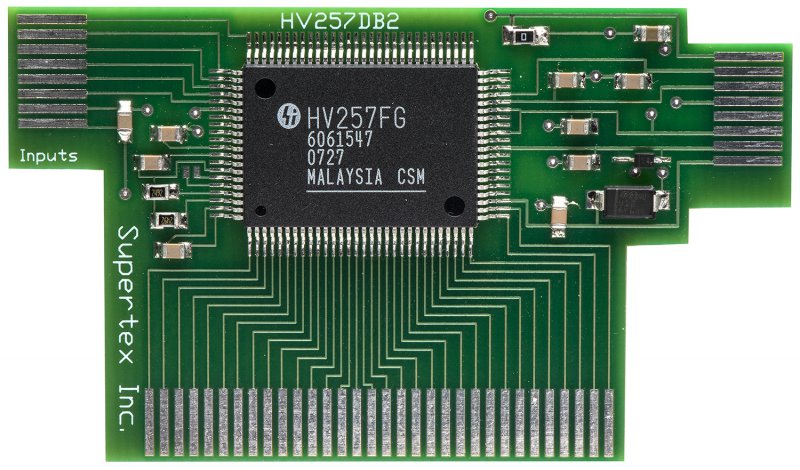

The HV257DB2 is a 32-Channel, 295V, sample and hold amplifier array with a nominal gain of 72V/V. The purpose of the HV257DB2 is to provide a means to easily evaluate the HV257FG-G device. A high voltage supply, VPP, and four low voltage supplies, AVDD and DVDD, AVNN and DVNN, are required. Referring to the demo board drawing shown below, the logic and VSIG connections are on the left, the high voltage outputs are on the bottom, and the supplies are on the right.
PLEASE CONTACT YOUR LOCAL MICROCHIP SALES OFFICE FOR DEMO BOARD AVAILABILITY.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
HV257DB2 User Guide Download 25211f43-1472-4398-8fa7-ce77f7aa6d64
