Overview

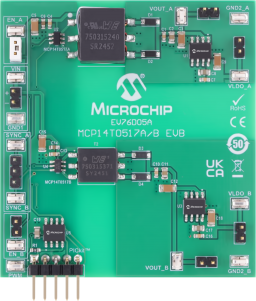

The MCP14T0517A/B Evaluation Board is used to evaluate and demonstrate Microchip Technology’s MCP14T0517A and MCP14T0517B products. This board demonstrates the MCP14T0517A and MCP14T0517B configured in two isolated power supplies, each one providing a regulated output voltage of typically 5V and a 500 mA load current.
The board features two channels, one for MCP14T0517A and one for MCP14T0517B. Each channel has two outputs: one regulated via MCP1727 LDO and one unregulated. Other on-board features include connectors and test points for the input and outputs, on-board and external enable control, connectors and test points for the internal/external clock and the programable 1 MHz clock signal via the on-board PIC12F1822 microcontroller
The MCP14T0517A/B Evaluation Board has the following features:
• Input Voltage (VCC): 5V
• Typical Regulated Output Voltage (VLDO_A and VLDO_B): 5V
• Output Current: up to 500 mA (on each channel)
• Switching Frequency: 150 kHz for the MCP14T0517A and 450 kHz for the MCP14T0517B
• On-board programable clock via PIC12F1822 microcontroller of up to 1 MHz (resulting in a switching frequency of up to 500 kHz)
• Synchronization with external clock signal
• On-board/external enable control
• Overcurrent and Overtemperature Protections
•Ro-HS Compliant
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP14T0517A/B Evaluation Board | User Guides | Download | ||
| MCP14T0517A/B EVB (EV76D05A) BOM | Board Design Files | Download | ||
| MCP14T0517A/B EVB (EV76D05A) Schematic | Board Design Files | Download | ||
| MCP14T0517A/B EVB (EV76D05A) Gerbers | Board Design Files | Download | ||
| MCP14T0517A/B EVB (EV76D05A) hex file | Software Libraries and Firmware | Download | ||
| MCP14T0517A/B EVB (EV76D05A) Altium Files | Board Design Files | Download | ||
| MCP14T0517A/B EVB (EV76D05A) UK-DoC | Certifications | Download | ||
| MCP14T0517A/B EVB (EV76D05A) EU-DoC | Certifications | Download | ||
| MCP14T0517A/B EVB (EV76D05A) China-RoHS-Declaration | Certifications | Download | ||
| MCP14T0517A/B EVB (EV76D05A) EU-REACH-Statement | Certifications | Download |
