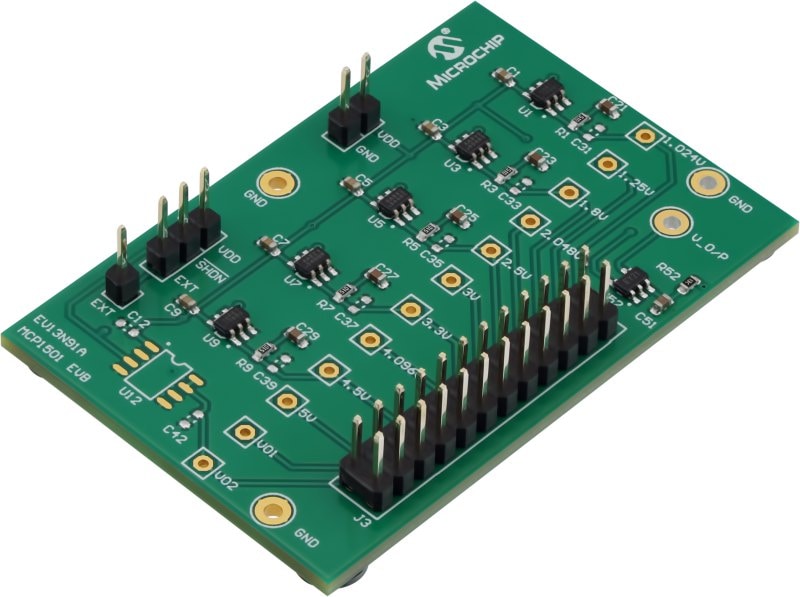

230414-msld-photo-ev13n91a-angle-transparent

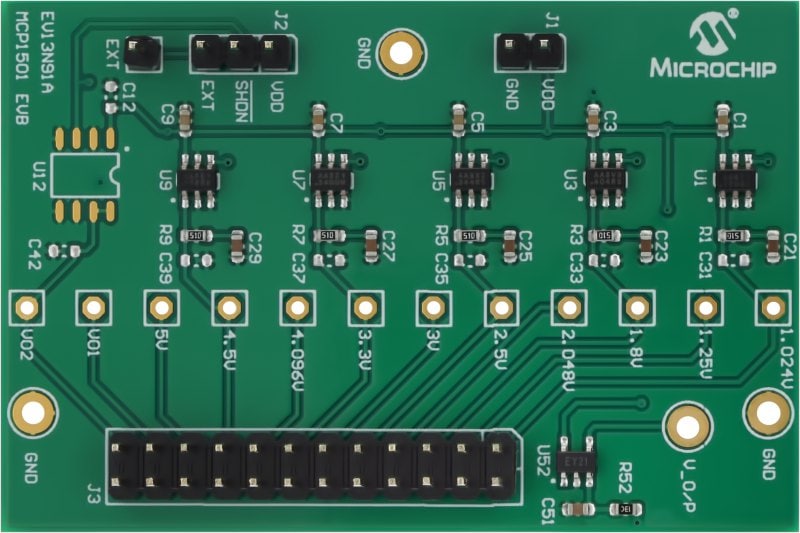

230414-msld-photo-ev13n91a-front-transparent

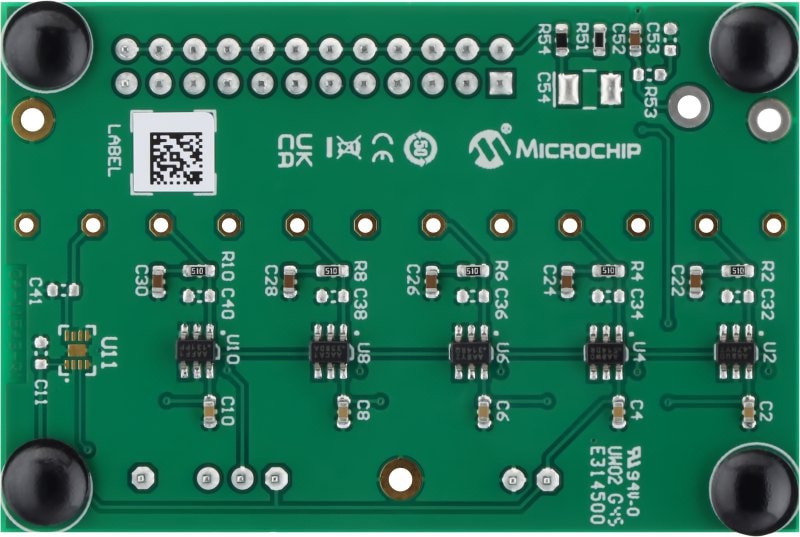

230414-msld-photo-ev13n91a-back-transparent
230414-msld-photo-ev13n91a-angle-transparent
230414-msld-photo-ev13n91a-front-transparent
230414-msld-photo-ev13n91a-back-transparent

Part Number: EV13N91A

EV13N91A MCP1501 VOLTAGE REFERENCE EVALUATION BOARD

• MCP1501 Evaluation Board (EV13N91A)

• Jumper

• Important Information Sheet.

View Purchasing Options
Contact Us

Overview

The MCP1501 Evaluation Board provides the possibility to evaluate the performance of all 10 voltage options of the MCP1501. It also provides the external filter circuit with the option to connect each voltage option exclusively and evaluate the output. It gives additional 8-lead WDFN and 8-lead SOIC package footprints to work with different package options as well.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
MCP1501 Evaluation Board User Guide Download 6f31e8c6-3763-48bb-b0fc-4f5b0bc96647

Silicon Products

Product
Title
Product
Title
MCP1501 High Precision Buffered Voltage Reference MCP1501 High Precision Buffered Voltage Reference
