Overview
This product is no longer available for sale.

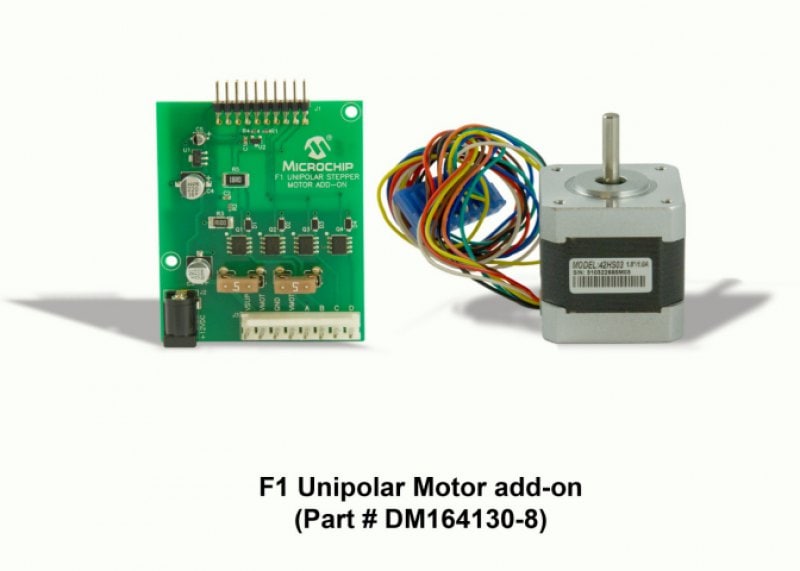

The Unipolar Stepper Motor add-on is a simple development accessory that plugs directly into the F1 LV Evaluation Platform and incorporates all the components necessary to implement Unipolar Stepper motor control.
- Direct connect to F1 LV Evaluation Platform (does not support the F1 Evaluation Platform)
- 4 MOSFET half bridge circuits for Bipolar stepper motor drive
- Pin connector interface for motor
- Motor current limiting adjustment
- 12V plug with voltage regulation
- Debug Header
- Pin connector for additional power connections
- 5A Fuses
