Part Number: DM160214

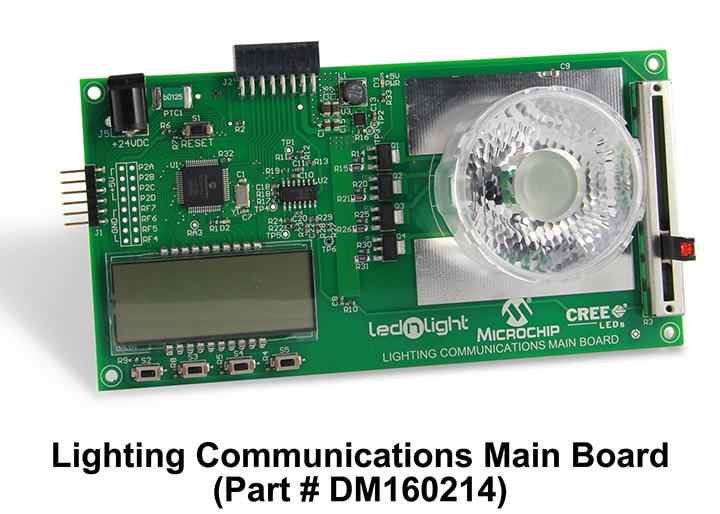

DM160214 - LIGHTING COMMUNICATIONS DEVELOPMENT PLATFORM - MAIN BOARD
- Populated with PIC16F1947 for user interface, communications, and LED control
- 4-channel constant current control with RGBW color mixing and dimming
- Slider potentiometer for dimming control

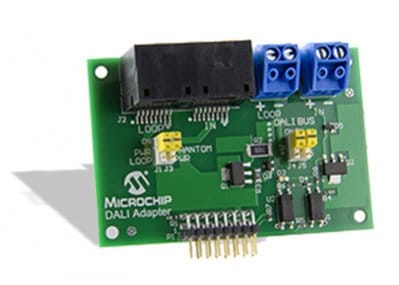

- Universal Communications Adapter Interface
- DALI, DMX512A, and future support
- Master & Slave support for DALI and DMX512A
- DALI commissioning and support for custom zones & scenes
- LCD display & push button user interface
- Customizable capabilities
- Populated with MCP6004 Opamp for LED current feedback
- Populated with MCP16322 for 5V power conversion
- Populated with Cree XLamp MC-E Color delivering red, green, royal-blue, and white in a single LED – High lumen output in a small form factor
- Populated with the LEDnLIGHT collimator LLC19N optic and holder by Gaggione for high quality color mixing and tight beam control
- 9-12V Power Supply Inpu
Documentation
|
Title
|
|||
|---|---|---|---|
| Lighting Communications Development Platform User Guide | Download | ||
| Lighting Communications Development Platform Highlights & Demonstration Overview | Download | ||
| Lighting Communications Development Platform Sell Sheet | Download | ||
| Lighting Communication Development Platform Schematics | Download |
