Overview

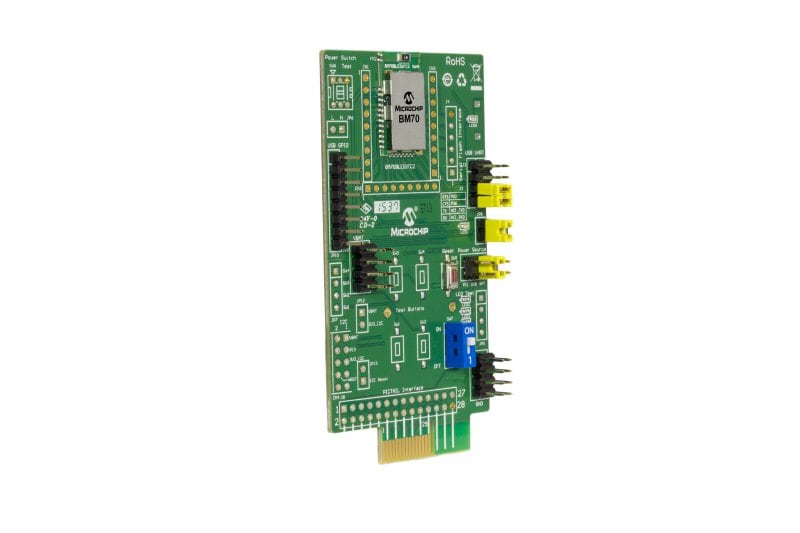

The BM-7x-OTA Dongle is a Bluetooth Low Energy (BLE) Dongle that communicates wirelessly with the BLE module on the end product's board to enable testing or programming Over The Air (OTA). With RF transmit power -20dBm, the Dongle connects to the target board by a short distance preventing unnecessary connections to other boards nearby. The default supported modules include BM70, RN4870, BM71, RN4871, BM77, RN4677, BM78 and RN4678. With a micro-USB cable connected to a PC (Windows), a MPAF tool executes device testing or configures device parameters through Bluetooth BLE connection over the air. On-board jumpers and status LEDs allow the user to quickly and easily test or program the target module.
- USB 5V power sourced through micro-USB
- Connection and test interface between the BM-7x-OTA Dongle and PC Tool (UART Command Tool)
- Update Flash code or UI table using the USB port (micro-USB)
- Mode configuration for Application mode or Test mode
- LED status display
- BM-7x-OTA Dongle Board
- Micro-USB cable
- Information Sheet
