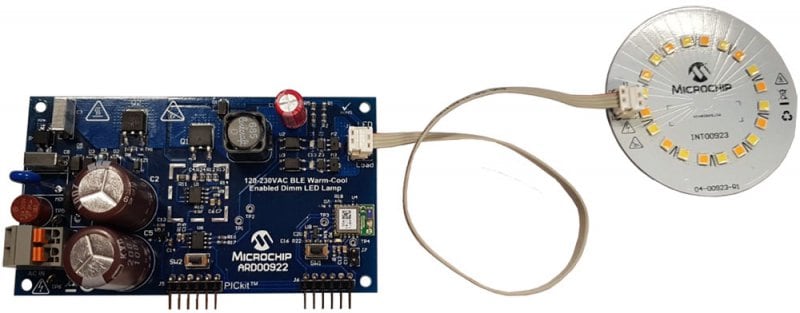

Part Number: ARD00922

BLUETOOTH WHITE-COLOR-MIX LED DRIVER





Overview

Microchip has developed a Total System Solution (TSS) that demonstrates how to drive and control two different color temperature LED strings via Bluetooth communication.

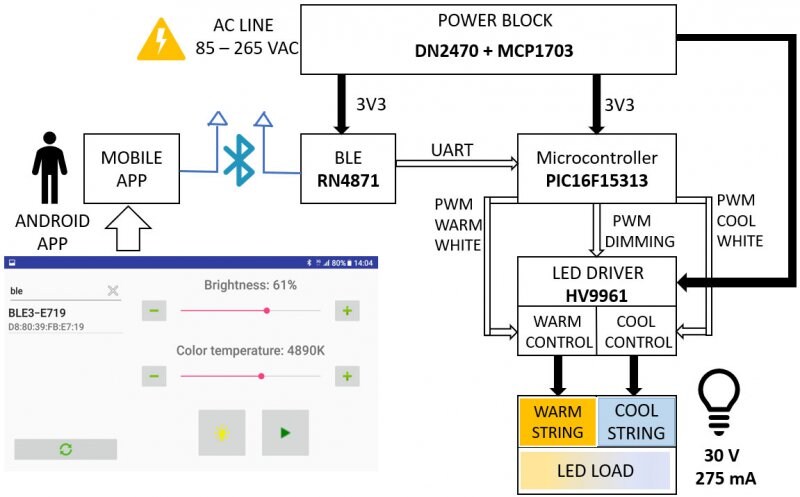

This reference design combines a buck LED driver (HV9961) with an 8-bit PIC16F15313 Microcontroller . The MCU communicates with the BLE module (RN4871) through UART  to create an intelligent LED Lighting Demo Solution.

Learn more and download design files
