Part Number: ADM00871

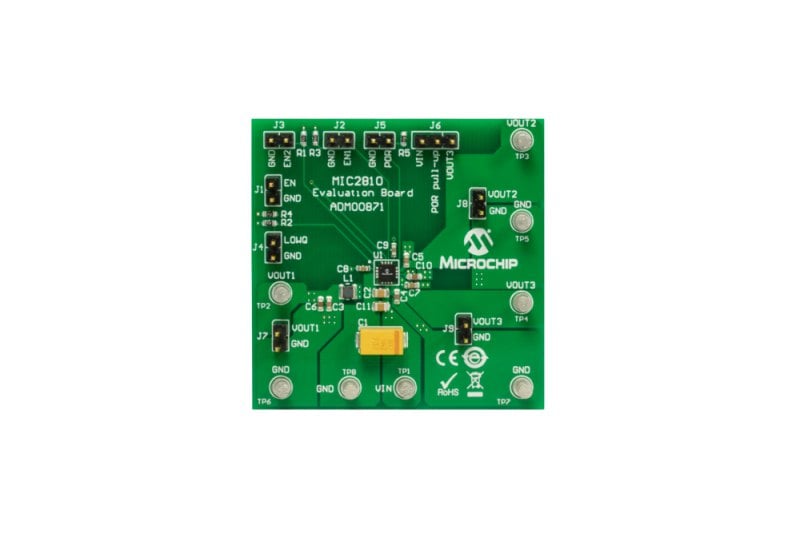

MIC2810 3 OUTPUT PMIC EVALUATION BOARD

* 2.7V to 5V input voltage range (LDO2 regulates down to 3.6V)
* 2MHz Dc/DC converter and two stand-alone LDOs
* 600mA DC/DC output current in PWM mode
* Low Power Mode available
* >90% efficiency
* 300mA each LDO output current

View Purchasing Options
Contact Us

Overview

The MIC2810 Evaluation Board is used to demonstrate the capabilities of MIC2810 PMIC which can deliver 600mA from a DC/DC buck converter and 300mA from each of the two stand-alone LDOs. The board accepts an input voltage from 3.6V to 5.5V and will deliver an output voltage of 1.8V for the DC/DC converter, 1.25V and 3.3V from the LDOs.

Package Contents

1 x MIC2810 3 output PMIC Evaluation Board

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
ADM00871 - MIC2810 3 output PMIC Evaluation Board - Gerbers Download e8d6d402-58c9-4f39-bb0e-487f328f9009
ADM00871 - MIC2810 3 output PMIC Evaluation Board - Schematic Download 48241ec8-d57b-4db7-9b91-f54ffe1a9cc4
ADM00871 - MIC2810 3 output PMIC Evaluation Board - BOM Download 49f9f6f3-aebb-4dd8-a8a5-d60e697349c0
