Part Number: ADM00345

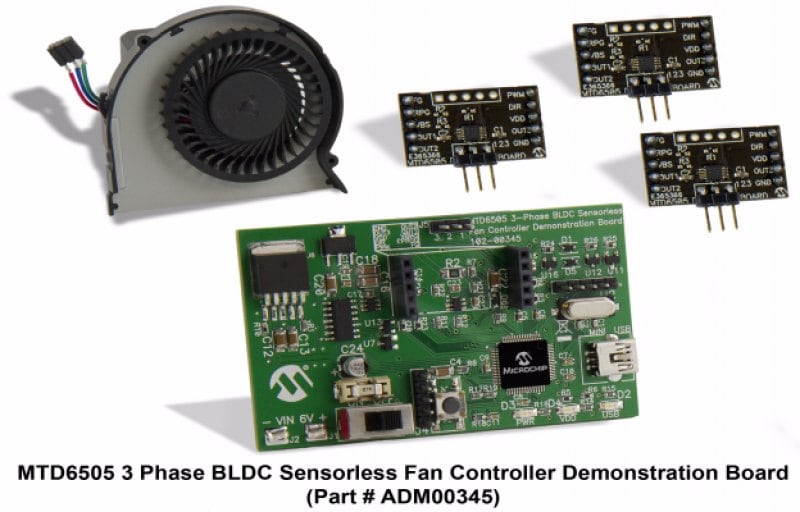

MTD6505 3-PHASE BLDC SENSORLESS FAN CONTROLLER DEMONSTRATION BOARD

User Guide: PDF
MTD6505 3-Phase BLDC Sensorless Fan Controller Demonstration Board User's Guide
View Purchasing Options
Contact Us

Overview

The MTD6505 3-Phase BLDC Sensorless Fan Controller Demonstration Board allows the control and monitoring of the MTD6505 device using PC software connected to the board via a USB connection. The included board software provides several features including VDD control and monitoring, pulse-width modulation (PWM) control, speed and current consumption monitoring. It also allows selecting the RPROG resistor value for fan fitting.

Devices Supported: MTD6505

  • Abilities to control and monitor a 3-Phase BLDC fan or motor through the MTD6505 device
  • Four selectable KM ranges through GUI software
  • Advanced measurements is available for broad range of 3-Phase BLDC fan validation

    • The MTD6505 3-Phase BLDC Sensorless Fan Controller Demonstration Board allows the control and monitoring of the MTD6505 device using PC software connected to the board via a USB connection. The included board software provides several features including VDD control and monitoring, pulse-width modulation (PWM) control, speed and current consumption monitoring. It also allows selecting the RPROG resistor value for fan fitting.

    Devices Supported: MTD6505

    Cannot load image!

    Documentation

    Filter by Document Type
    Search Documentation
    Title
    Document Category
    MTD6505 3-Phase BLDC Sensorless Fan Controller Demo Bd (ADM00345) Software v1.03 Software Libraries and Firmware Download
    MTD6505 3-Phase BLDC Sensorless Fan Controller Demonstration Board User's Guide User Guide Download
    MTD6505 3-Phase BLDC Sensorless Fan Controller Demo Bd (ADM00345) Gerbers Board Design Files Download
    MTD6505 3-Phase BLDC Sensorless Fan Controller Demo Bd (ADM00345) Schematic Board Design Files Download
    MTD6505 3-Phase BLDC Sensorless Fan Controller Demo Bd (ADM00345) BOM Board Design Files Download
    MTD6505 3-Phase BLDC Sensorless Fan Controller Demo Bd (ADM00345) Firmware Software Libraries and Firmware Download
