Overview

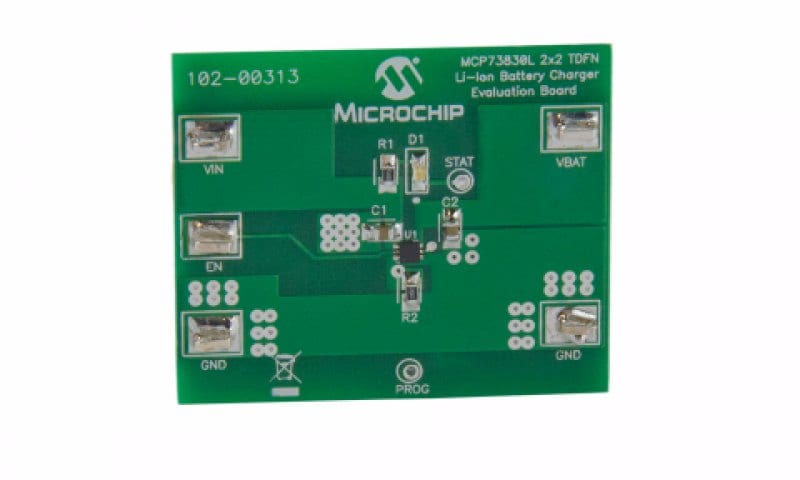

The MCP73830L 2x2 TDFN Li-Ion Battery Charger Evaluation Board demonstrates the features and abilities of Microchip's MCP73830L single-chip linear Li-Ion battery charger. This board utilizes the MCP73830L which effectively charges Li-Ion batteries with high-accuracy, preset-voltage regulation. It is designed to allow observation of the performance of the integrated circuit via multiple test points.
Devices Supported: MCP73830L
Presents MCP73830L performance in a small, compact design.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP73830/MCP73830L Data Sheet | Data Sheets | Download | ||
| MCP73830L 2x2 TDFN Li-Ion Battery Charger Evaluation Board (ADM00313) Schematics | Board Design Files | Download | ||
| MCP73830L 2x2 TDFN Li-Ion Battery Charger Evaluation Board (ADM00313) BOM | Board Design Files | Download | ||
| MCP73830L 2x2 TDFN Li-Ion Battery Charger Evaluation Board (ADM00313) Gerbers | Board Design Files | Download | ||
| MCP73830L 2x2 TDFN Li-Ion Battery Charger Evaluation Board User's Guide | User Guide | Download |
