Overview

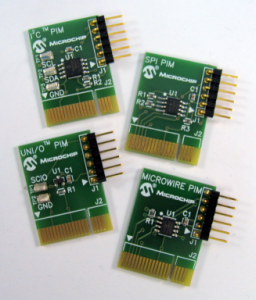

The Serial EEPROM PIM PICtail™ Modules are a series of boards designed around Microchip Serial EEPROM devices. The boards are designed to interface with the PICtail Plus connector as well as the MPLAB® Starter Kit for Serial Memory Products and the PICkit™ 2, allowing you to get started right out of the box.
- Plug-and-play with PICtail™ Plus connector and PICkit™ 2 connector
- High density, wide voltage range devices mounted to the boards
- Follows the published recommended usage for each bus, including decoupling capacitors, pull-up/down resistors
- Test points for oscilloscope connections for firmware debugging (I2C™ and UNI/O® only)
- All four standard serial interfaces are included for maximum flexibility in developing your application
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| Memory PICtail Plus and PIM Modules | User Guide | Download |
