Part Number: VSC5634EV

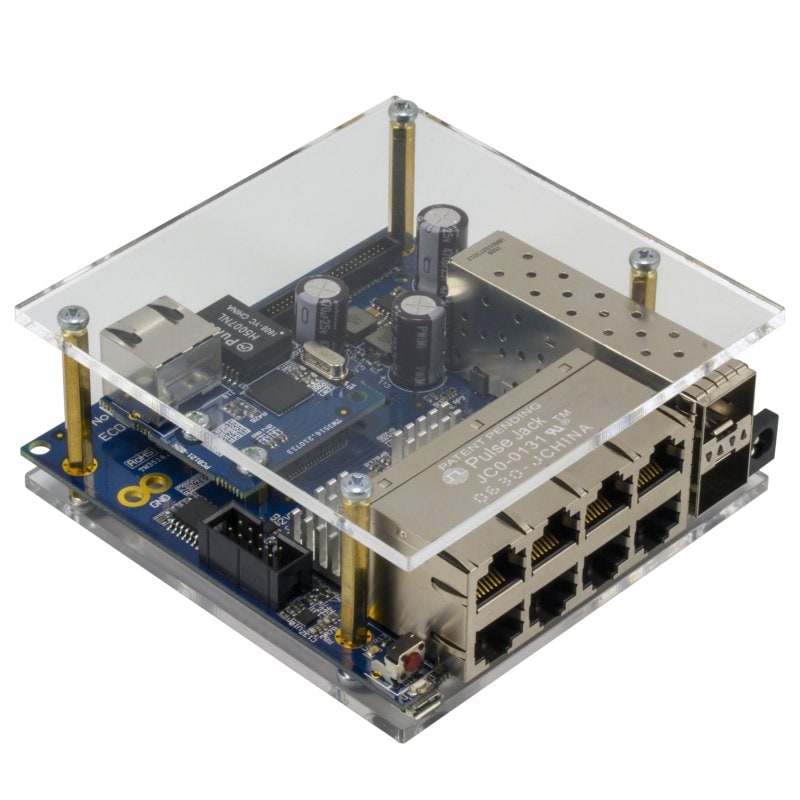

VSC5634EV - OCELOT, ELISE, 8XRJ45, 2XSFP, UNMANAGED REFERENCE BOARD

  • VSC7512 Ethernet switch with 4 integrated PHYs
  • VSC8514 quad PHY
  • 8 10/100/1000BASE-T (RJ45) Ethernet ports
  • 2 100M/1G/2.5Gbit/s Ethernet SFP ports
  • Optional 10/100/1000BASE-T (RJ45) Ethernet port (VSC8221 PHY)
  • Serial port
  • Reset button with one-shot reset
  • LEDs
  • 12Vdc power in socket
View Purchasing Options
Contact Us

Overview

The VSC5634EV ethernet development system can be used to demonstrate the VSC7511/12 Ocelot unmanaged Ethernet switches and the VSC8514 PHY devices
