Part Number: VSC5611EV

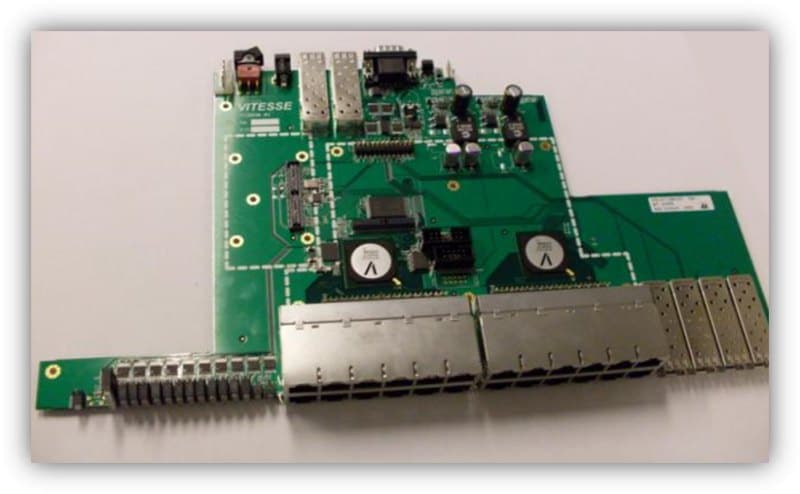

VSC5611EV - SPARX-III MANAGED/CARACAL EVALUATION BOARD, 24XRJ45/2XSFP

View Purchasing Options
Contact Us

Overview

The VSC5611EV ethernet development system can be used to demonstrate the SparX-III managed / Caracal Ethernet switches and the VSC8512 PHY device

    • VSC742x managed Ethernet switch with up to 12 integrated PHYs
    • VSC8512 12-port Ethernet PHY
    • 24 RJ45 1G front ports
    • 2 SFP 1G/2.5G uplink module slots
    • Embedded MIPS CPU system for management
    • Support for PoE+ and Sync-E add-on boards

Cannot load image!

Documentation

Filter by Document Type
Search Documentation
Title
Document Category
VSC5611EV Reference Design Files Board Design Files Download
vsc6819-webstax-software Software Library Web Link
vsc6816-smbstax-software Software Library Web Link
vsc6817-istax-software Software Library Web Link
