Overview
This product is no longer available for sale.

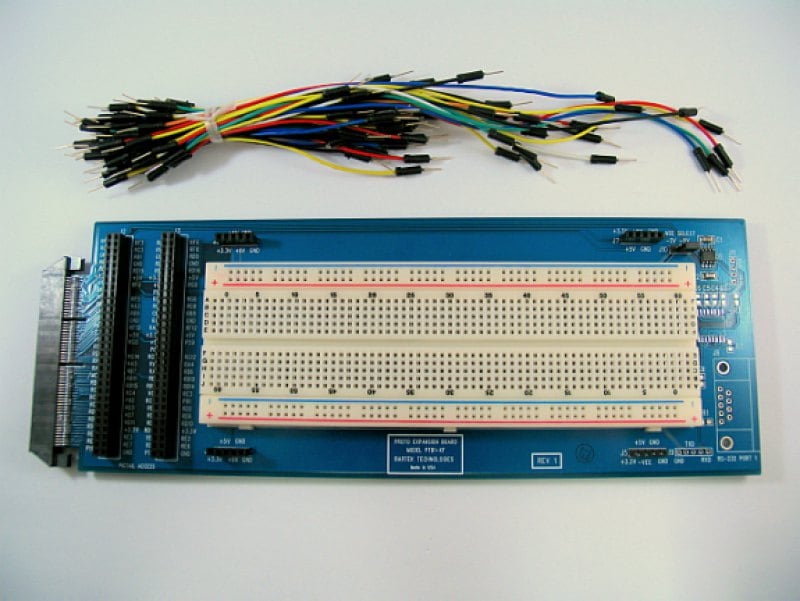

The Bartek PTB1-XF breadboard expander is the perfect match for your Explorer 16 Development Board. A generous prototyping area provides 830 tie points with four power and ground strips. Four separate jumper locations provide easy access to power distribution from the Explorer 16. A negative voltage generator allows you to select between -5V and -3.3V for those analog designs that require the use of a negative supply rail. Also available (but not populated) is an optional serial port for UART1 on the Explorer 16.
A 70 piece wire kit is included for making connections to the PICtail I/O bus, which is clearly marked on 4 rows of headers. A unique and versatile tool from Bartek Technologies.
The Bartek PTB1-XF breadboard expander is the perfect match for your Explorer 16 Development Board. A generous prototyping area provides 830 tie points with four power and ground strips. Four separate jumper locations provide easy access to power distribution from the Explorer 16. A negative voltage generator allows you to select between -5V and -3.3V for those analog designs that require the use of a negative supply rail. Also available (but not populated) is an optional serial port for UART1 on the Explorer 16.
A 70 piece wire kit is included for making connections to the PICtail I/O bus, which is clearly marked on 4 rows of headers. A unique and versatile tool from Bartek Technologies.
- Connects to the horizontal expansion connector on Explorer 16
- Large breadboard area with 830 tie points
- Negative voltage generator onboard (-5V or -3.3V)
- Optional serial port for UART1 (not populated)
- Includes a 70 piece jumper wire kit
