Part Number: RN-ISP
RN-ISP RN IN-SYSTEM PROGRAMMER
- Provides interface between the Linux development computer and the module
- Contains on-board reset switch to reset application on the target module
- Contains on-board wake switch to force awake the application from sleep state
- Provides a number of test points and hooks for connecting oscilloscope and/or multimeter for debug purposes
Overview
The RN-ISP provides a simple In-System Programming interface for products and devices incorporating RN Wi-Fi modules and SoC. It allows the user to download code to WiFly modules and debug them. The RN-ISP downloads code to the WiFly evaluation boards using either a 16 or 10-pin debug header. The RN-ISP measures current consumption and plots the power profiles of the WiFly modules in different power states. It also exposes the hardware signals and certain GPIO pins for debugging.The RN-ISP easily connects to a computer with a USB interface and to the target hardware with a standard 16-pin debug interface. The target hardware may be powered by the USB port of the computer. The RN-ISP also includes reset and wake buttons to help with debugging applications.

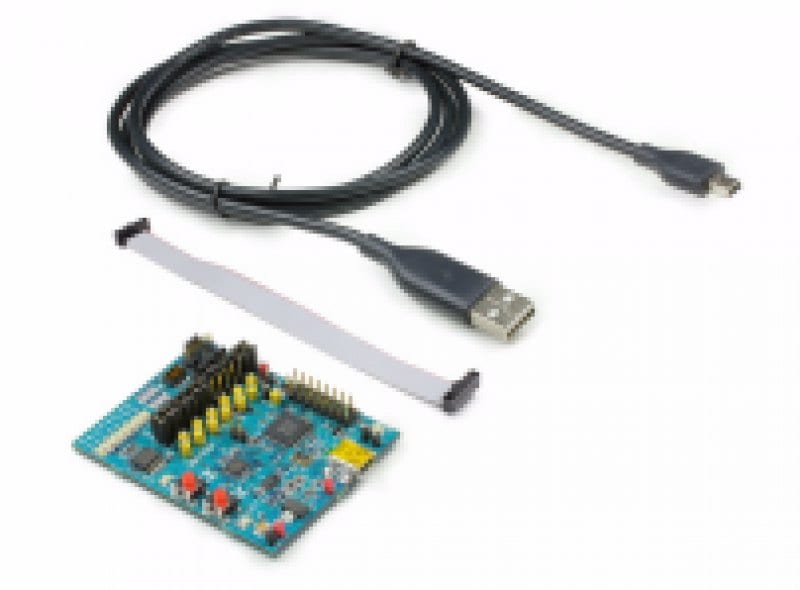

Package Contents
- RN-ISP development board
- 16-pin ribbon cable
- USB cable
