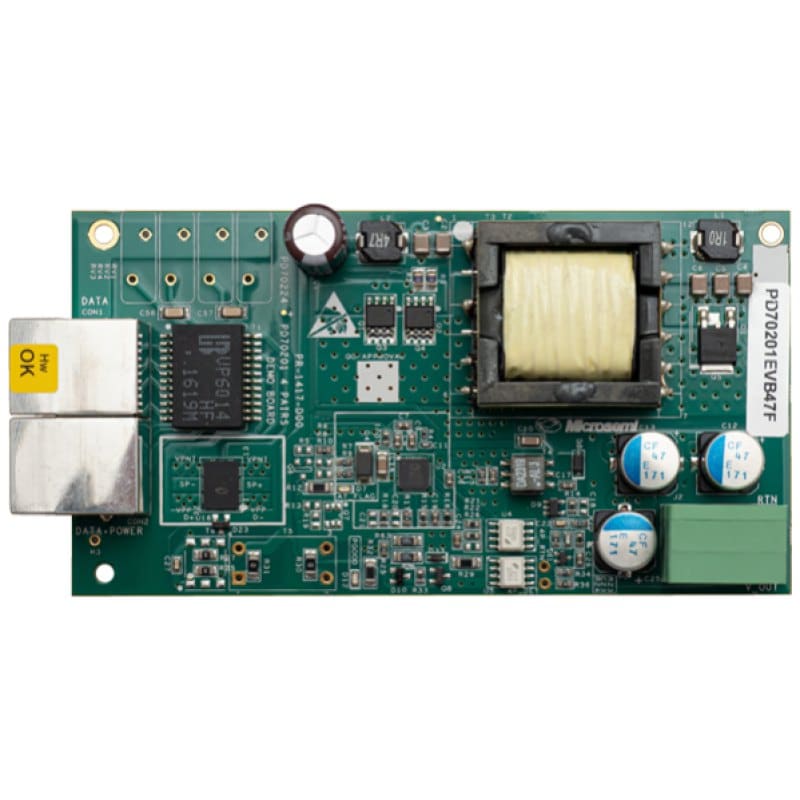

Part Number: PD70201EVB47F
PD WITH PD70201 12V 4A, FB
- Featuring PD70201
- IEEE 802.3af/at standard compliant
- 47.7W - 12 V / 4 A output voltage / current
- Flyback topology
- Power is supplied through the 4-pairs of the Cat5 cable
- Two RJ45 connectors (data and power in, data out)
- Wall adapter – DC in connector
- Output voltage connector
- On board power good LED indicator
- On board AT detected LED indicator
- Pulse transformer for routing the data to PD application to enable full PD evaluation
- Evaluation Board working temperature: 0°C to +70°C
- RoHS compliant
Overview
The PD70201EVB47F evaluation board provides designers with an environment needed to evaluate the performance and implementation of PD applications based on PD70201 device. The board is using a single PD device PD70201ILQ to support the detection, Class and Power supplying phases on the 4 pairs of the Cat5 cable. PD70201ILQ supports the current of the 4 pairs, which is twice the level of a standard IEEE802.3AT Type 2 interfaces.
