3637-pd-im-7601
3637-pd-im-7601

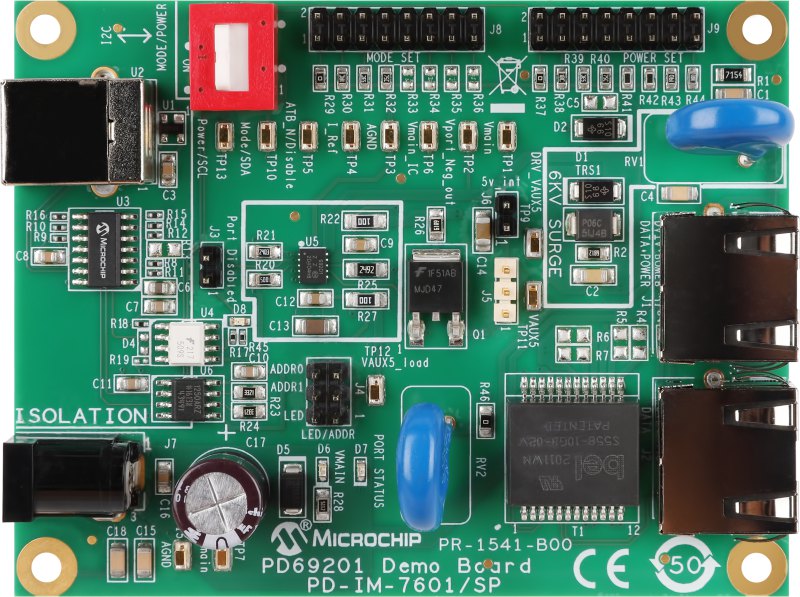

Part Number: PD-IM-7601

PSE AT WITH PD69201

  • Featuring PD69201 1-Port PSE PoE Manager
  • IEEE 802.3af/at compliant
  • Design to support one port PoE application
  • Two RJ45 connectors (data in, data and power out)
  • Switch domain isolated from PoE domain
  • Control with Microchip GUI on a PC through USB interface
  • LED status indicators for system power, port power, and port disable
  • Requires only a single power source
  • Easy configuration of switch's board
  • Evaluation board working temperature: 0°C to +40°C
  • RoHS compliant

View Purchasing Options
Contact Us

Overview

The PD-IM-7601 evaluation board provides the designer with the needed environment to evaluate the performance and the implementation of a single 2-pair port PoE application based on the PD69201 PoE Manager. The evaluation board enables PoE designers to evaluate Microchip's PoE solution with maximum flexibility and ease in configuration.
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
PD-IM-7601 Design Files Download 8f048155-b44f-4d62-a7dc-c6cc4eb04db9
PD-IM-7601SP Evaluation Board User Guide Download dbe95db6-f979-4eea-86a9-6bc5e3438243
