Part Number: HV833DB1

HIGH VOLTAGE EL LAMP DRIVER DEMOBOARD

  • Please download the user guide for more information

Overview

This product is no longer available for sale.

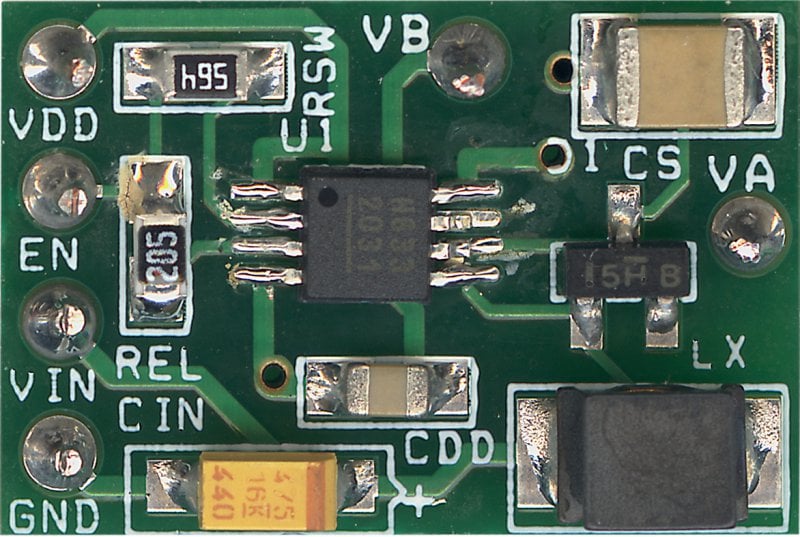

The HV833DB1 demoboard contains all necessary circuitry to demonstrate the features of the HV833 EL lamp driver.

For additional assistance in designing EL driver circuits, please refer to Application Notes AN-H33 (Effect of External Components on Performance of Microchip EL Drivers) and AN-H45 (EL Lamp Driver Circuits to Reduce Lamp Audible Noise).

PLEASE CONTACT YOUR LOCAL MICROCHIP SALES OFFICE FOR DEMO BOARD AVAILABILITY.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
HV833DB1 User Guide Download 2656c066-3637-4e3d-a978-a73106bcaa4f
