Overview

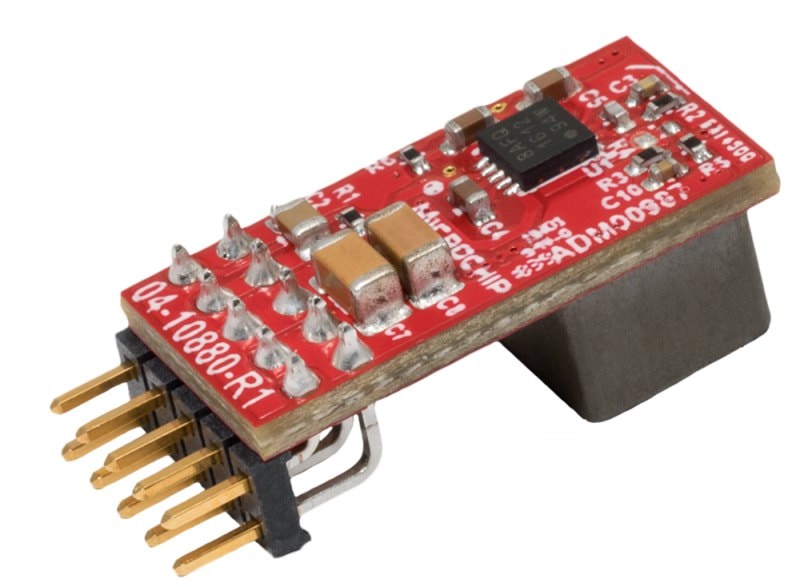

The PM8 module is a compact solution, highly efficient, step-down voltage converter that will convert the input voltage rail (typically 12V) to 5V regulated output voltage. The maximum output current for this step-down converter is 8A. The board demonstrates the capabilities of the MCP19035 600 kHz Synchronous Buck Converter Controller in a typical step-down application. The reference design can be modified to support output voltages from 3.3V to 5V by changing a single resistor.
Features:
• Input Voltage range 6V to 16V
• Output Voltage: 0.8 to 5.5V set by external resistor
• 8A continuous output current with the module soldered on motherboard
• 6A continuous output current stand alone
• High Efficiency (up to 95.5%)
1 x MCP19035 Power Module 8A Evaluation Board
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MCP19035 Power Module 8A Evaluation Board (ADM00987) Schematic | Board Design Files | Download | ||
| MCP19035 Power Module 8A Evaluation Board (ADM00987) Gerbers | Board Design Files | Download | ||
| MCP19035 Power Module 8A Evaluation Board (ADM00987) BOM | Board Design Files | Download |
