CL88031 230VAC OFFLINE LED LOAD BOARD

View Purchasing Options
Contact Us

Overview

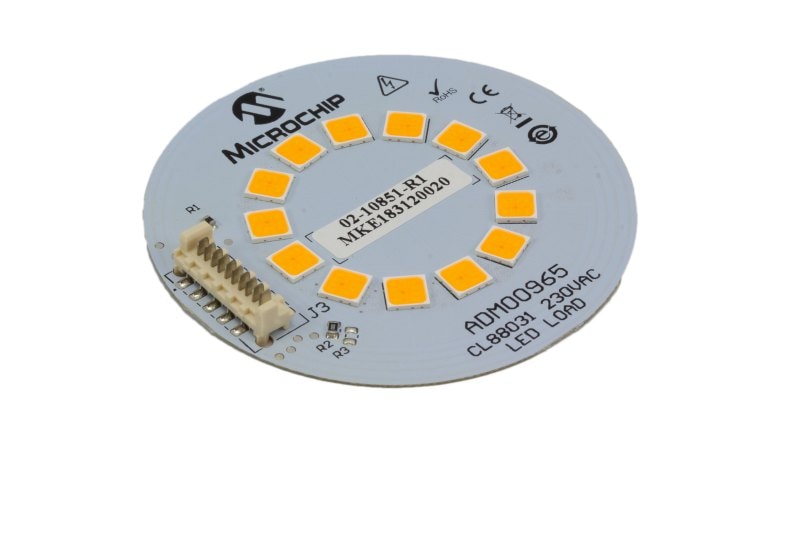

The CL88031 LED Load board is designed to work together with CL88031 LED Driver Board (ADM00963), and consist of 13 series connected LEDs, driven sequentially by 6 TAPS LED Linear Driver, CL88031 from 230VAC mains.

Package Contents

The 230VAC LED Load Board (ADM00965) kit INCLUDES:

* 230VAC LED Load Board (ADM00965)
* LED Load pin fin heat sink
* Thermal double-sides adhesive tape
