2737-adm00860
2737-adm00860

Part Number: ADM00860

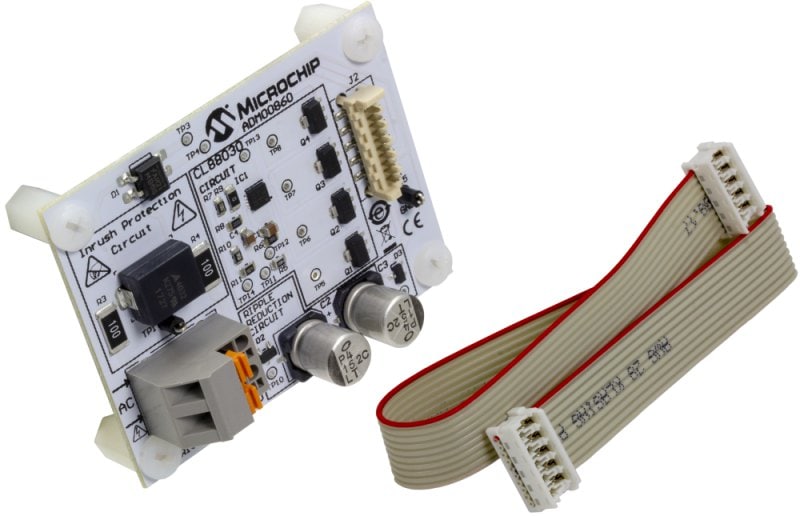

CL88030 230VAC LED DRIVER EVAL BOARD

* Scalable
* No inductors
* Efficient operation
* No high frequencies
* Inherently dimmer compatible
* Active line regulation
* Overtemperature protection

View Purchasing Options
Contact Us

Overview

The CL88030 230VAC Evaluation Board, ADM00860 is an LED Driver powered directly from the 230VAC line and based on Microchip Technology's CL88030 Sequential Linear LED Driver.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
ADM00860 - CL88030 230VAC LED Driver Eval Board - Gerbers Download 2310ec27-4fbf-4047-98ee-d04be078106d
ADM00860 - CL88030 230VAC LED Driver Eval Board - Schematic Download 36542753-5a54-4972-9855-a01fb94249d9
ADM00860 - CL88030 230VAC LED Driver Eval Board - BOM Download 87cf4566-0e8c-4e0d-8ed8-5cbea9021087
CL88030 230 VAC Offline LED Driver Evaluation Board User's Guide Download 89f5ba20-bbe4-4d07-b194-5d2c67bb716e
