Overview

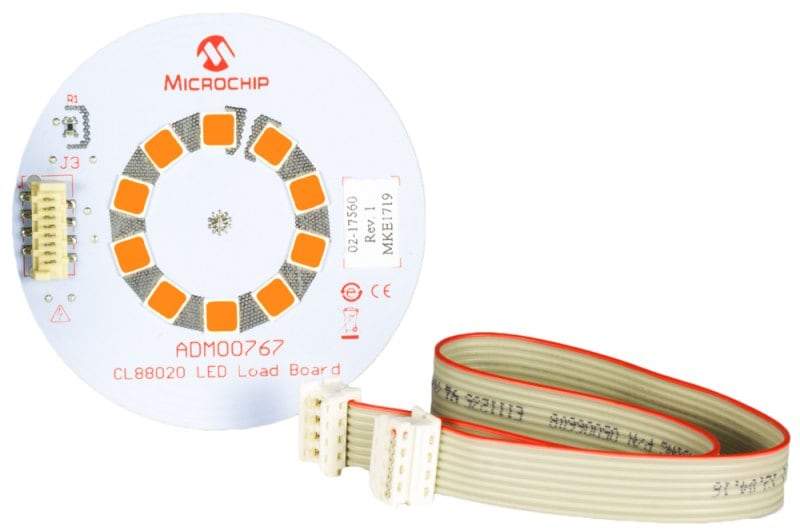

The CL88020 LED Load Board is designed to work together with CL88020 LED Driver Board (ADM00766) and consist of 10 LEDs series and parallel connected and driven sequentially by 4 TAPS LED Linear Driver, CL88020 , from 120VAC mains.
The CL88020 LED Load Board (ADM00767) has the following features:
- Contains 10 LEDs (GW P9LR31.EM) grouped in 4 taps
- An 8-wire flat cable input connector
- One NTC for over-temperature protection
The CL88020 LED Load Board (ADM00767) is available for purchase from www.microchipdirect.com. The CL88020 LED Load Board (ADM00767) kit includes:
- CL88020 LED Load Board (ADM00767)
- LED Load pin fin heat sink
- Thermal double-sides adhesive tape
- Important Information Sheet
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| CL88020 120 VAC Offline LED Driver Evaluation Board User’s Guide | User Guide | Download | ||
| CL88020 LED Load Board (ADM00767) Gerbers | Board Design Files | Download | ||
| CL88020 LED Load Board (ADM00767) BOM | Board Design Files | Download | ||
| CL88020 Sequential Linear LED Driver with Four Taps | Data Sheets | Download | ||
| CL88020 LED Load Board (ADM00767) Schematic | Board Design Files | Download |
