1119-adm00516-emc1182-evaluation-board
1119-adm00516-emc1182-evaluation-board

Part Number: ADM00516

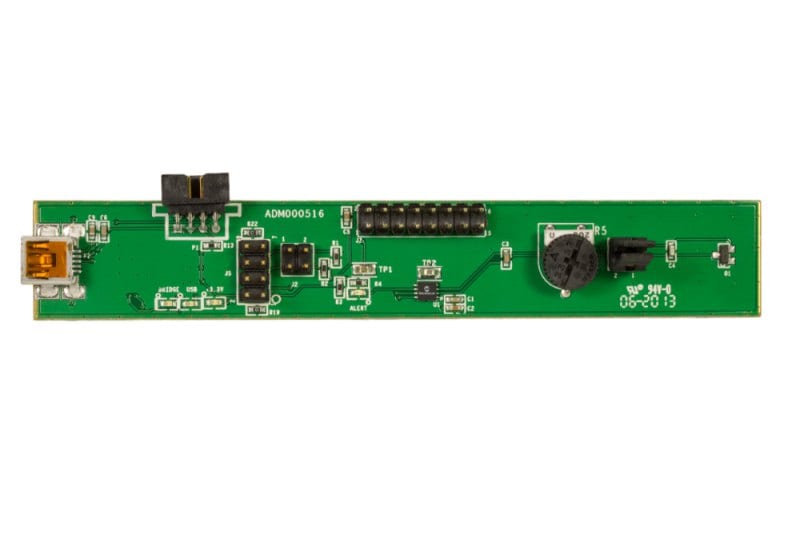

EMC1182 TEMP SENSOR EVALUATION BOARD

Headers for connecting an external diode or CPU/GPU

Resistance Error Correction verification

USB-to-SMBus bridge for power and communications

Capability to connect directly to an external SMBus master

Accompanying Chip Manager software allows for viewing, changing, and saving of register values



Overview

The EMC1182 Temp Sensor Evaluation Board provides the means to demonstrate all of the EMC1182 features, and allows to view and modify registers. LEDs indicating status information and test points are included to enable system voltages monitoring, using a voltmeter or an oscilloscope. The board requires only one universal serial bus (USB) connection to power the board. The USB-to-SMBus bridge regulates the +5V USB power to +3.3V used by the EMC1182 and other evaluation board circuitry.
Package Contents
To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

All Application Notes

Documentation

Title
Document Id
EMC1182 Temperature Sensor Evaluation Board User's Guide Download 1f2f7866-57f3-45c8-9c1f-2d5f56cec8c5
EMC1182 Data Sheet Download 6129c164-a396-4233-be00-d83ce93c43be

Software

Title
Date
Chipman v4.16.6 Download 03 Sep 2013
