Part Number: ADM00468

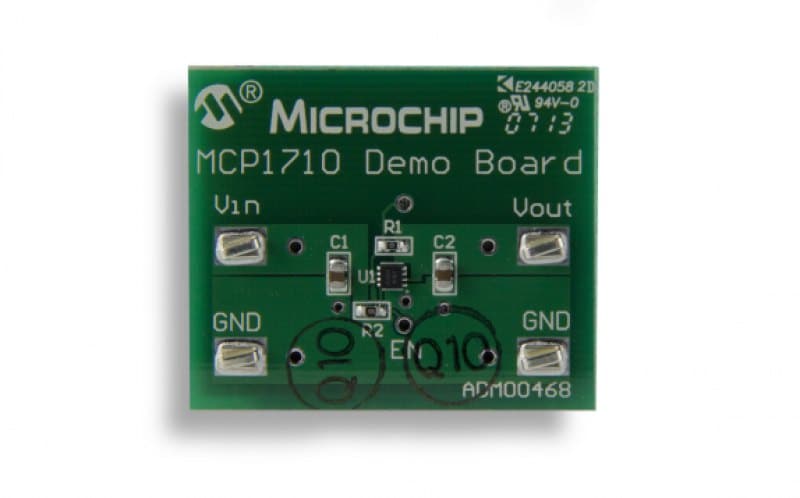

MCP1710 DEMO BOARD


  • Output Voltage set to 3.0V
  • 200 mA Output Current
  • EN Input Test Point
  • Input Voltage Range 2.5V to 5.5V
  • Ultra Low Quiescent Current of 20 nA
  • Low-Dropout Voltage: 450 mV Maximum at 200 mA
  • Overview


    This product is no longer available for sale.

    The MCP1710 Demo Board demonstrates how the MCP1710 device operates over a wide input voltage and load range. Test points are provided for input and output, allowing the demo board to be connected directly to a system. A copper via connected to the EN input can be used to turn the MCP1710 on and off. Turning the device on, (EN > 70% of VIN) will enable the device. When the EN pin is less than 30% of VIN, the device output is turned off.

    Devices Supported: MCP1710

    Package Contents

    The MCP1710 Demo Board demonstrates how the MCP1710 device operates over a wide input voltage and load range. Test points are provided for input and output, allowing the demo board to be connected directly to a system. A copper via connected to the EN input can be used to turn the MCP1710 on and off. Turning the device on, (EN > 70% of VIN) will enable the device. When the EN pin is less than 30% of VIN, the device output is turned off.

    Devices Supported: MCP1710

    Documentation


    Title
    Document Id
    MCP1710 Demo Board (ADM00468) BOM Download 74149157-545b-4baf-8b35-8e9d86c608c4
    MCP1710 Demo Board (ADM00468) Schematics Download 4345cd87-950f-4654-aa53-641e32fbf63b
    MCP1710 Demo Board (ADM00468) Gerbers Download e72ca85c-2c06-4732-bac0-c6d944b17f67
    MCP1710 Demo Board User's Guide Download c20e28ac-5744-4a55-991c-4e12275873c5
