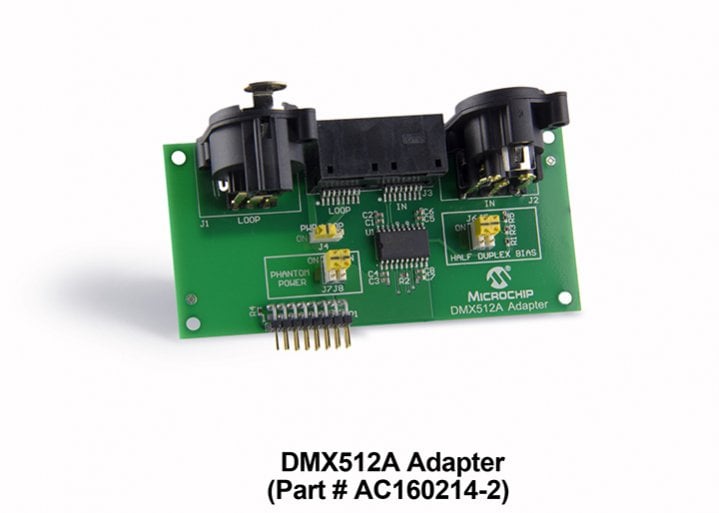

1459-ac160214-2-dmx512a-adapter
1432-ac160214-prototyping-board
1459-ac160214-2-dmx512a-adapter

Part Number: AC160214

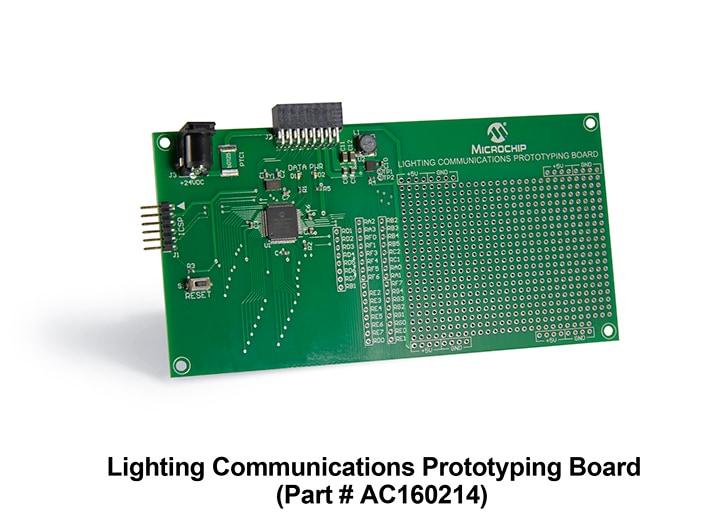

AC160214 - LIGHTING COMMUNICATIONS DEVELOPMENT PLATFORM - PROTOTYPING BOARD

  • Populated with PIC16F1947 for user interface and communications
  • Universal Communications Adapter Interface
  • DALI, DMX512A, and future support
  • Master & Slave support for both DALI and DMX512A
  • DALI commissioning and support for custom zones & scenes
  • Customizable capabilities
  • Populated with MCP16322 for 5V power conversion
  • Bread boarding space for customized lighting development
  • 9-12V Power Supply Inpu

Overview

The Lighting Communications Development Platform provides a universal lighting development platform for the creation of communications enabled lighting applications. The platform consists of a main board and various communications interface adapters to support in the development of DALI, DMX512A, as well as future protocols.

Learn more at : Intelligent Lighting and Control

Contact us for support and sales related queires.
