Microchip Technology Inc

RN4871

In Production

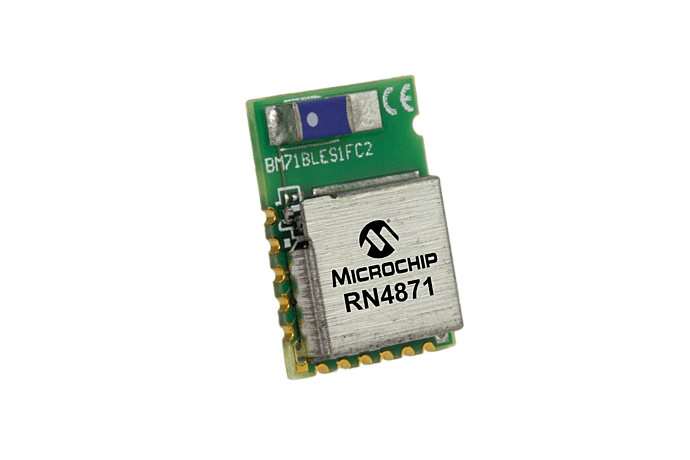

The RN4871 is a small form factor, Bluetooth 4.2 Low-Energy module measuring just 9 x 11.5 x 2.1 mm.  This fully-integrated module is designed for easy implementation into a broad range of applications.  Supporting the latest Bluetooth standard, it delivers up to 2.5x throughput improvement and more secure connections vs. Bluetooth 4.1 based products.  Developers can easily interface to the device via a standard UART interface, available on most Microcontrollers and Processors.

The RN4871 has a completely integrated Bluetooth software stack, and offers a shielded regulatory certified version with built-in antenna.  Developers are freed from the complexities of Bluetooth Software and RF development and can simply utilize the RN4871 as a wireline replacement.  Perfect for IoT (Internet of Things) applications, when interfaced to a BLE enabled smartphone or Bluetooth Internet Gateway, applications can be monitored, controlled and updated from anywhere in the world.



    Features

        • Bluetooth® Smart 4.2 BLE compliant
          • ASCII interface commands for communication with the host microcontroller
            • Scripting features to allow for operation without a host microcontroller.
              • Increased privacy features
                • White list for determining connections
                  • MLDP compatibility with RN4020
                    • Remote configuration capability
                      • 1.9V~3.6V operating range
                        • UART/ I2C/ SPI interface supported
                        • Antenna: Ceramic chip Antenna or external antenna connection
                      Parameter Name
                      Value
                      Bluetooth Low Energy
                      Yes
                      FCC Certified
                      Yes
                      No-shield Option
                      Yes
                      ASCII Interface
                      Yes
                      PWM
                      1
                      Memory Type
                      Flash
                      GPIO
                      4
                      Pin Count
                      16
                      Package Type
                      Surface mount module
                      Package Size
                      Shield 9 x 11.5 mm, Unshield 6x8mm
                      Min Temp Range
                      -20C
                      Max Temp Range
                      +70C
                      Op Voltage Min
                      1.9V
                      Op Voltage Max
                      3.6V
                      Documentation
                      Data Sheets
                      10/20/2017
                      2301KB
                        Brochures




                      Brochures
                      07/11/2016
                      929KB
                        Software




                      Software
                      11/21/2017
                      17913KB
                      Software
                      04/25/2016
                      793KB
                      Software
                      04/29/2016
                      257KB
                      Software
                      09/05/2017
                      840KB
                        Certifications



                      Certifications
                      07/13/2017
                      5708KB
                      Certifications
                      06/08/2016
                      1521KB
                      Certifications
                      06/08/2016
                      89KB
                      Certifications
                      06/08/2016
                      199KB
                      Certifications
                      06/19/2017
                      298KB
                      Certifications
                      06/08/2016
                      1668KB
                      Certifications
                      11/02/2016
                      303KB
                        Product Line Documents



                      Product Line Documents
                      09/27/2016
                      132KB
                      Product Line Documents
                      09/13/2017
                      427KB
                        User Guides



                      User Guides
                      09/18/2017
                      1742KB
                      User Guides
                      12/28/2016
                      4421KB
                      Pricing & Samples
                      All pricing shown in USD only.
                      Part Number
                      Leads
                      Package Type
                      Temp Range
                      Packing
                      1+
                      26+
                      100+
                      1000+
                      5000+
                      Buy
                      Sample
                      RN4871U-V/RM118
                      17
                      MODULE
                      Various
                      TRAY
                      5.82
                      5.27
                      4.98
                      4.98
                      4.98

                      RN4871-V/RM118
                      16
                      MODULE
                      Various
                      TRAY
                      7.03
                      6.37
                      6.02
                      6.02
                      6.02


                      ** Device not available to purchase online. Please contact a sales office for pricing information.
                      Open a microchipDIRECT account today!

                      Development Tools
                      • Demo & Eval Boards
                      RoHS Information
                      Part
                      Number
                      Device
                      Weight
                      Shipping
                      Weight
                      Lead
                      Count
                      Package
                      Type
                      Package
                      Width
                      Solder
                      Composition
                      JEDEC
                      Indicator
                      RoHS

                      China
                      EFUP
                      RN4871U-V/RM118
                      0.459375
                      17
                      MODULE
                      8x6x1.6mm
                      NiAu
                      e4
                      RN4871-V/RM118
                      2.169591
                      16
                      MODULE
                      11.5x9x2.1mm
                      NiAu
                      e4
                      To see a complete listing of RoHS data for this device, please Click here
                      Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
