Microchip Technology Inc

MRF24J40MD

In Production

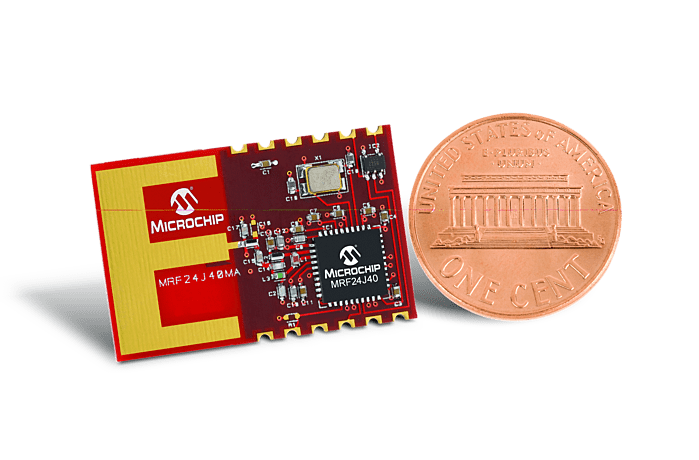

MRF24J40MD is a 2.4 GHz IEEE 802.15.4 radio transceiver module intended for longer range applications.  The MRF24J40MD has an integrated PCB antenna, matching circuitry, and supports the ZigBee®, MiWi™ and MiWi P2P protocols.  The MRF24J40MD module connects to hundreds of PIC® microcontrollers via a 4-wire SPI interface and is an ideal solution for AMR/AMI metering, wireless sensor networks, home automation, building automation and consumer applications.



    Features

          • 2.4 GHz IEEE 802.15.4 Transceiver Module
          • Supports ZigBee®, MiWi™, and MiWi P2P protocols
          • Pin Compatible with MRF24J40MB and MRF24J40MC
          • Compliance:
            • Modular Certified for the United States (FCC) and Canada (IC)
            • European R&TTE Directive Assessed Radio Module
            • Australia/New Zealand
          • Compatible with Microchip microcontroller families (PIC16, PIC18, PIC24, dsPIC33 and PIC32)
          • Integrated PCB Antenna with simple four-wire SPI interface to PIC® microcontroller
          • Small size: 0.9" x 1.3" (22.9 mm x 33.0 mm), Surface Mountable
          • Integrated Crystal, Internal Voltage Regulator, Matching Circuitry, Power Amplifier, Low Noise Amplifier
          • Easy Integration into Final Product: Minimize Product Development, Quicker Time to Market
          • Integrated PA/LNA - Tx power +19 dBm - Rx sensitivity -104 dBm
          • Hardware CSMA-CA Mechanism, Automatic ACK response
          • Hardware security engine (AES-128)
          • Automatic packet retransmit capable
        Parameter Name
        Value
        Type
        802.15.4
        Output Power (dBm)
        20.00
        Clock
        20 MHz
        Host Interface
        4-Wire SPI
        Pin Count
        12
        RF Module
        Yes
        RF Transceiver
        Yes
        Operating Temperature Range
        -40 to 85
        Frequency Range
        2.405-2.475
        Input Sensitivity (mVpp)
        -104.00
        Rx Input Sensitivity (dB)
        -104
        RSSI
        Yes
        TX Current Consumption
        77.00
        RX Current Consumption
        25.00
        Sleep Mode Current Consumption
        Yes
        MAC
        Yes
        MAC Features
        CSMA-CA
        Encryption
        AES128
        Antenna
        PCB
        Documentation
        Data Sheets
        03/25/2014
        909KB
          Application Notes



        AppNote
        08/10/2009
        839KB
        AppNote
        08/08/2017
        414KB
        AppNote
        08/08/2017
        509KB
        AppNote
        08/08/2017
        407KB
          Software




        Software
        05/24/2016
        95KB
          Certifications



        Certifications
        07/24/2014
        754KB
        Certifications
        07/25/2014
        2244KB
        Certifications
        06/20/2014
        4980KB
        Certifications
        07/14/2014
        68KB
        Certifications
        10/22/2015
        1572KB
          ApplicationNote Literature




        AppNoteLiterature
        01/13/2010
        305KB
        Pricing & Samples
        All pricing shown in USD only.
        Part Number
        Leads
        Package Type
        Temp Range
        Packing
        1+
        26+
        100+
        1000+
        5000+
        Buy
        Sample
        MRF24J40MD-I/RM
        12
        MODULE
        -40C to +85C
        TRAY
        15.90
        14.80
        12.95
        12.95
        12.95
        The device you have selected is not available for sampling on-line. You may obtain samples for this device by contacting a Microchip Sales Office, an authorized disti or via www.microchipdirect.com
        MRF24J40MDT-I/RM
        12
        MODULE
        -40C to +85C
        T/R
        15.90
        14.80
        12.95
        12.95
        12.95


        ** Device not available to purchase online. Please contact a sales office for pricing information.
        Open a microchipDIRECT account today!

        Development Tools
        • Demo & Eval Boards
        • MRF24J40MD PICtail/PICtail Plus Daughter Board ( AC164134-3 )

          MRF24J40MD

          The MRF24J40MD PICtail™/PICtail Plus Daughter Board is a demonstration and development daughter board for the MRF24J40MD IEEE 802.15.4, 2.4 GHz RF Transceiver module.

          The daughter board can plug into multiple Microchip Technology demonstration and development boards.  For example, for 8-bit microcontroller development using the PIC18 Explorer Board (DM183032) or for...

        RoHS Information
        Part
        Number
        Device
        Weight
        Shipping
        Weight
        Lead
        Count
        Package
        Type
        Package
        Width
        Solder
        Composition
        JEDEC
        Indicator
        RoHS

        China
        EFUP
        MRF24J40MD-I/RM
        2.500000
        7.400000
        12
        MODULE
        Varies
        NiAu
        e4
        MRF24J40MDT-I/RM
        2.500000
        4.171429
        12
        MODULE
        Varies
        NiAu
        e4
        To see a complete listing of RoHS data for this device, please Click here
        Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
