Microchip Technology Inc

ATWINC1500

In Production

Microchip's WINC1500 is an IEEE 802.11 b/g/n IoT network controller. It is the ideal add-on to existing MCU solutions bringing Wi-Fi and Network capabilities through SPI-to-Wi-Fi interface. The WINC1500 connects to any SAM, PIC24 and PIC32 MCU with minimal resource requirements. The WINC1500's most advanced mode is a single stream 1x1 802.11n mode providing up to 72 Mbps PHY throughput.

The WINC1500 features a fully integrated Power Amplifier, LNA, Switch and Power Management. The WINC1500 provides internal Flash memory as well as multiple peripheral interfaces including UART and SPI. The only external clock source needed for the WINC1500 is a high-speed crystal or oscillator (26 MHz). The WINC1500 is available in a QFN package or as a certified module.

The ATWINC1500 has 4 Mb of flash memory which can be used for system software. The ATWINC1510 has 8 Mb flash memory for even greater flexibility.



    Features

        • Single-band 2.4GHz b/g/n
        • Extreme low power
        • Compact footprint: 5 x 5 mm QFN
        • Operating voltage: 3.0V to 4.2V
        • Serial host interface: SPI
        • Security protocols supported:  WPA/WPA2 Personal, TLS, SSL
        • Network services:  DHCP, DNS, TCP/IP (IPv4), UDP, HTTP, HTTPS
        • Antenna Options:

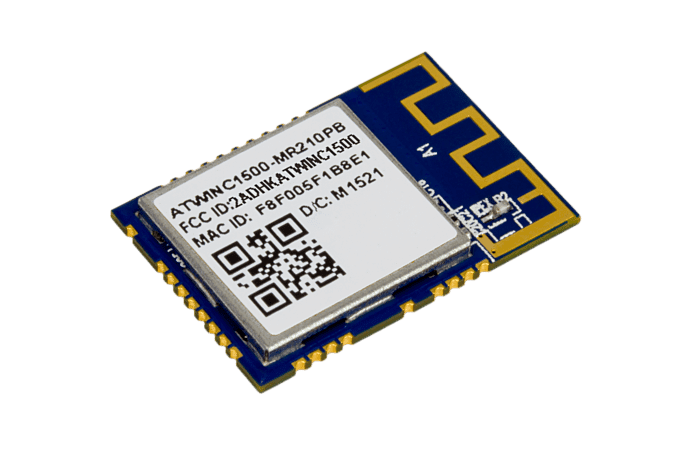

          • Chip and PCB antenna (ATWINC1500-MR210PB)
          • Chip and u.FL connector (ATWINC1500-MR210UB)
        • Available in a fully-certified module package:
        • Part numbers reflect SW version, now available with SDK v19.5.2
          • ATWINC15x0-MR210xB1952
            • Recommended for new designs
            • SDK 19.5.2 with TLS v1.2 server mode support, Crypto ECC508 integration, WPA2 security to AP mode & more
            • Integrated into Atmel Studio 7 - See ASF release notes
          • ATWINC1510-MR210PB1944 (Legacy SDK)
        • Atmel Software Framework (ASF) Free Software download available
    Parameter Name
    Value
    Type
    Wi-Fi Module
    Output Power (dBm)
    17 dBm
    Host Interface
    SPI
    Pin Count
    28
    Package
    Surface Mount Module
    RF Transceiver
    Yes
    Operating Temperature Range
    -40 to +85C
    Frequency Range
    2.412-2.472 MHz
    Rx Input Sensitivity (dB)
    -95
    TX Current Consumption
    172 mA
    RX Current Consumption
    70 mA
    Antenna
    PCB, U.FL
    Operating Voltage Range
    3.0V to 4.2V
    SPI
    1
    UART
    1
    Cloud Partners
    Yes
    Documentation
    Data Sheets
    02/27/2017
    961KB
      Application Notes




    AppNote
    11/21/2017
    1312KB
      Brochures




    Brochures
    07/25/2017
    363KB
      Certifications



    Certifications
    03/02/2017
    4855KB
    Certifications
    04/11/2017
    1037KB
    Certifications
    10/06/2017
    3828KB
    Certifications
    10/13/2017
    71KB
    Certifications
    03/02/2017
    634KB
    Certifications
    06/20/2017
    7484KB
      Product Line Documents



    Product Line Documents
    10/17/2017
    1443KB
    Product Line Documents
    10/16/2017
    180KB
      Design Guides




    Design Guides
    05/22/2017
    17678KB
      User Guides



    User Guides
    11/16/2017
    416KB
    User Guides
    05/09/2017
    677KB
    User Guides
    05/09/2017
    2379KB
    User Guides
    11/20/2017
    1356KB
    Pricing & Samples
    All pricing shown in USD only.
    Part Number
    Leads
    Package Type
    Temp Range
    Packing
    1+
    26+
    100+
    1000+
    5000+
    Buy
    Sample
    ATWINC1500-MR210PB
    28
    MODULE
    -40C to +85C
    TRAY
    11.82
    10.78
    10.15
    10.15
    10.15

    ATWINC1500-MR210PB1944
    28
    MODULE
    -40C to +85C
    TRAY
    11.82
    10.78
    10.15
    9.08
    8.54

    ATWINC1500-MR210PB1952
    28
    MODULE
    -40C to +85C
    TRAY
    11.82
    10.78
    10.15
    9.08
    8.54

    ATWINC1500-MR210PB1954
    28
    MODULE
    -40C to +85C
    TRAY
    11.82
    10.78
    10.15
    9.08
    8.54

    ATWINC1500-MR210UB1954
    28
    MODULE
    -40C to +85C
    TRAY
    12.25
    11.18
    10.52
    9.41
    8.85

    ATWINC1510-MR210PB
    28
    MODULE
    -40C to +85C
    TRAY
    12.38
    11.30
    10.63
    10.63
    10.63

    ATWINC1510-MR210PB1952
    28
    MODULE
    -40C to +85C
    TRAY
    12.38
    11.30
    10.63
    9.51
    8.95

    ATWINC1510-MR210PB1954
    28
    MODULE
    -40C to +85C
    TRAY
    12.38
    11.30
    10.63
    9.51
    8.95

    ATWINC1510-MR210UB
    28
    MODULE
    -40C to +85C
    TRAY
    12.81
    11.69
    11.00
    11.00
    11.00

    ATWINC1510-MR210UB1952
    28
    MODULE
    -40C to +85C
    TRAY
    12.81
    11.69
    11.00
    9.85
    9.26

    ATWINC1510-MR210UB1954
    28
    MODULE
    -40C to +85C
    TRAY
    12.81
    11.69
    11.00
    9.85
    9.26


    ** Device not available to purchase online. Please contact a sales office for pricing information.
    Open a microchipDIRECT account today!

    Development Tools
    • Demo & Eval Boards
    • ATWINC1500 PICtail/PICtail Plus Daughter Board ( AC164156 )

      ATWINC1500

      The WINC1500 PICtail/PICtail Plus Daughter Board is a demonstration and development board for the WINC1510-MR210PB certified Wi-Fi module. This daughter board has PICtail and PICtail Plus connectors to interface with a PIC microcontroller on the development boards that supports either PICtail or PICtail Plus interface.The daughter board can be plugged into multiple Microchip Technology...

    • WINC1500 XPRO ( ATWINC1500-XPRO )

      WINC1500

      The ATWINC1500-XPRO is an extension board to the Xplained Pro evaluation platform. The ATWINC1500-XPRO extension board allows you to evaluate the ATWINC1500 low cost, low power 802.11 b/g/n Wi-Fi network controller module. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the ATWINC1500 and explains how to integrate the device in a...

    • SAM W25 Xplained Pro ( ATSAMW25-XPRO )

      SAM

      The SAMW25 Xplained Pro evaluation kit is a wireless hardware platform to evaluate the ATSAMW25H18-MR510PB Wi-Fi module which is based on the industry - leading low - power 2.4GHz IEEE 802.11 b/g/n Wi-Fi ATWINC1500 SoC (System on Chip) combined with the ARM® Cortex - M0+ ATSAMD21G18A microcontroller. Supported by the Studio integrated development platform, the kit provides easy access...

    • WINC1500 XSTK ( ATWINC1500-XSTK )

      WINC1500

      The ATWINC1500-XSTK Xplained Pro starter kit is a hardware platform for evaluating the ATWINC1500 low cost, low power 802.11 b/g/n Wi-Fi network controller module. Supported by the Atmel Studio integrated development platform, the kit provides easy access to the features of the ATWINC1500 and explains how to integrate the device in a custom design. The Xplained Pro series of evaluation kits...

    RoHS Information
    Part
    Number
    Device
    Weight
    Shipping
    Weight
    Lead
    Count
    Package
    Type
    Package
    Width
    Solder
    Composition
    JEDEC
    Indicator
    RoHS

    China
    EFUP
    ATWINC1500-MR210PA1104
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210UB
    50.000000
    28
    MODULE
    -
    ENIG
    b4
    ATWINC1500-MR210PB1172
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210UB1140
    50.000000
    28
    MODULE
    -
    ENIG
    b4
    ATWINC1500-MR210PA1164
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210PB1105
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210PA
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210PA1103
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210PB
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210UB1105
    50.000000
    28
    MODULE
    -
    ENIG
    b4
    ATWINC1500-MR210PB1140
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210PB1952
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210PB1944
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210PB1954
    1.980000
    28
    MODULE
    21.72x14.73xmm
    ENIG
    b4
    ATWINC1500-MR210UB1954
    50.000000
    28
    MODULE
    -
    ENIG
    b4
    ATWINC1500B-MU-T
    0.068700
    0.293750
    40
    VQFN
    5x5x0.9mm
    Matte Tin
    e3
    ATWINC1500A-MU-T
    0.068700
    0.293750
    40
    VQFN
    5x5x0.9mm
    Matte Tin
    e3
    ATWINC1500B-MU-Y
    0.068700
    0.361225
    40
    VQFN
    5x5x0.9mm
    Matte Tin
    e3
    ATWINC1500A-MU-Y
    0.068700
    0.361225
    40
    VQFN
    5x5x0.9mm
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
