AT24CM01

In Production

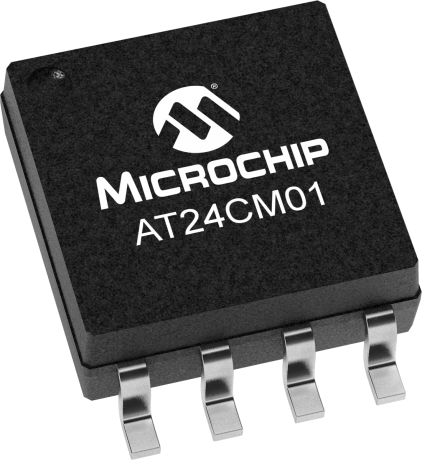

The Microchip AT24CM01 is a 1Mb Serial EEPROM utilizing an I2C (2-wire) serial interface. The device is organized as one block of 128K x 8 and is optimized for use in consumer and industrial applications where reliable and dependable nonvolatile memory storage is essential. The EEPROM is available in a variety of space-saving packaging options.



    Features

        • 128K x 8 (1 Mbit)
        • 2-Wire Serial Interface, I2C Compatible
          • 400 kHz and 1 MHz clock compatibility
        • Self-Timed Erase and Write Cycles (5 ms max.)
        • Low Power Consumption
          • Read current 2 mA (Max)
          • Write current 3 mA (Max)
          • Standby current 6 uA (Max)
        • Hardware Write-Protect Pin
        • More than 1 million erase/write cycles
        • Data retention > 40 years
        • Factory Programming Available
        • Available in 8-lead SOIC, 8-lead SOIJ, 8-lead TSSOP, and 8-ball WLCSP packages
