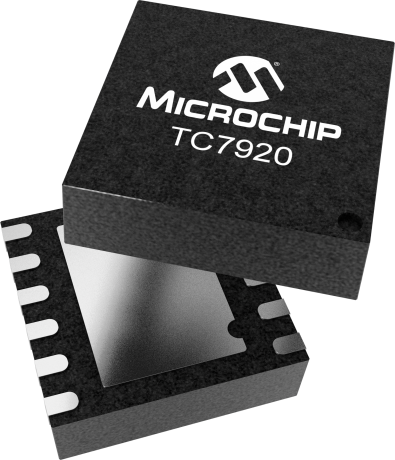

TC7920

Two Pair, N/P Channel Enhancement-Mode MOSFET w/ Drain Diodes

Status: In Production

Features:

  • High voltage Vertical DMOS technology
  • Integrated drain output high voltage diodes
  • Integrated gate-to-source resistor
  • Integrated gate-to-source Zener diode
  • Low threshold, Low on-resistance
  • Low input & output capacitance
  • Fast switching speeds
  • Electrically isolated N- and P-MOSFET pairs
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

TC7920 consists of two pairs of high voltage, low threshold N-channel and P-channel MOSFETs in a 12-Lead DFN package. All MOSFETs have integrated the output drain high voltage diodes, gate-to-source resistors and gate-to-source Zener diode clamps which are desired for high voltage pulser applications. The complimentary, high-speed, high voltage, gate-clamped N and P-channel MOSFET pairs utilize an advanced vertical DMOS structure and well-proven silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and with the high input impedance and positive temperature coefficient inherent in MOS devices. Characteristic of all MOS structures, these devices are free from thermal runaway and thermally induced secondary breakdown. Vertical DMOS FETs are ideally suited to a wide range of switching and amplifying applications where very low threshold voltage, high breakdown voltage, high input impedance, low input and output capacitance, and fast switching speeds are desired.

Additional Features
    • High voltage Vertical DMOS technology
    • Integrated drain output high voltage diodes
    • Integrated gate-to-source resistor
    • Integrated gate-to-source Zener diode
    • Low threshold, Low on-resistance
    • Low input & output capacitance
    • Fast switching speeds
    • Electrically isolated N- and P-MOSFET pairs
Parametrics
Name
Value
BVdss/BVdss N-Channel (V)
200
BVdss/BVdss P-Channel (V)
-200
Rds(on) N-Channel max (Ω)
7
Rds(on) P-Channel max (Ω)
8.0
Vgs(th) max (V)
2.0
Package
DFN-12
Note
Two N & P-Channel Pairs

Documents

Jump to:

Application Notes


Development tools data is currently unavailable.

Similar Devices

Product
BVdss/BVdss N-Channel (v)
Rds(on) N-Channel max (Ohms)
Price 5K
500
60
$4.10
200
7
$1.05
150
4
$0.99
200
7
$0.93
200
7
$0.95
200
7
$1.33
200
8
$5.90
200
5.3
$1.38
