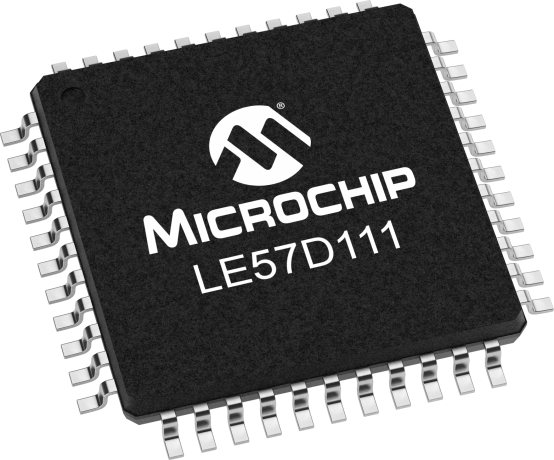

LE57D111

Dual Channel SLIC

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The innovative Le57D111 dual-channel SLIC device is designed for high-density POTS applications requiring a small footprint SLIC device with significant power savings. By combining the line interface of two channels into one SLIC device, the Le57D111 device enables the design of a low cost, high performance, and fully programmable line interface for multiple country applications worldwide. The on-chip Thermal Management (TMG) feature allows for significantly reduced power dissipation on the device. The Le57D111 device is offered in space-saving package types, 44-pin eTQFP and 32-pin PLCC. The small footprint of the SLIC device allows designers to save board space, increasing the density of lines on the board. The Le57D111 device is also designed to significantly reduce the number of external components required for linecard design. Microchip offers a range of compatible codec/filters that perform the codec function in a line card. In particular the QLSLAC device, another member of the VE580 series, combined with the Le57D111 device provides a programmable line circuit that can be configured for varying requirements. The system is very flexible and supports several low power wakeup options. Extremely low power is achievable using the 2.45 GHz ISM Band Wakeup-receiver option. The high level of integration includes a Media Access Controller, providing complete control of the device along with coding and decoding of RF messages. A standard SPI interface provides for easy access by the application.

Additional Features
  • Dual-channel SLIC device with small footprint
  • On-chip Thermal Management (TMG) feature in Normal and Reverse Polarity
  • Control states: Active (Normal and Reverse Polarity),
  • Standby, and Disconnect
  • On-hook transmission
  • Low standby power
  • -39 to -58 V battery operation
  • Two-wire impedance set by single external impedance
  • Device level thermal shutdown
  • Set on-chip constant-current feed
  • Programmable ring-trip detect threshold
  • Only +5 V and battery supply required
Parametrics
Name
Value
Application
Access Network SLIC
Series
VE580
Loop Length
Long
Battery Topology
External
Output Voltage (V) max
58
Number of Ports
2

Documents

Jump to:

Data Sheets


218KB

Please visit the Microsemi Software Download System (SDS) for available software.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
LE57D111BTC
0.289900
1.850000
44
TQFP
10x10x1mm
Matte Tin
e3
LE57D111BTCT
0.289900
1.080000
44
TQFP
10x10x1mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
