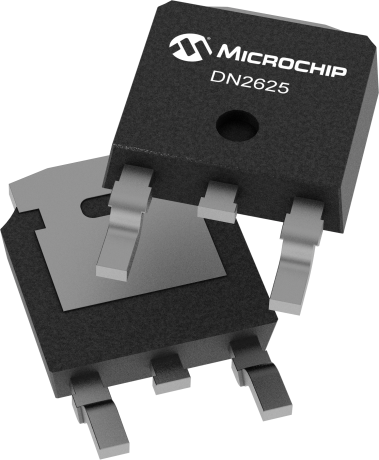

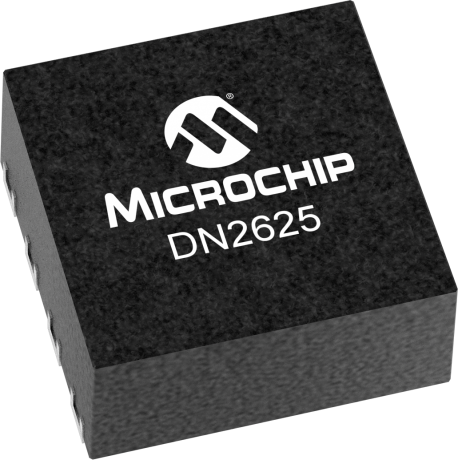

DN2625

250V, 3.5 Ohm, N-Channel, Depletion Mode, Vertical DMOS FET

Status: In Production

Features:

  • Very low gate threshold voltage
  • Designed to be source-driven
  • Low switching losses
  • Low effective output capacitance
  • Designed for inductive loads
  • Well matched for low second harmonic when driven by MD2130
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

DN2625 is a low threshold depletion-mode (normally-on) transistor utilizing an advanced vertical DMOS structure and well-proven silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and with the high input impedance and positive temperature coefficient inherent in MOS devices. Characteristic of all MOS structures, this device is free from thermal runaway and thermally-induced secondary breakdown. Vertical DMOS FETs are ideally suited to a wide range of switching and amplifying applications where high breakdown voltage, high input impedance, low input capacitance, and fast switching speeds are desired. The DN2625DK6-G contains two MOSFETs in an 8-lead, dual pad DFN package. The DN2625K6-G in the 14-lead QFN package is not recommended for new designs, but may continue to be purchased for existing designs.

Additional Features
    • Very low gate threshold voltage
    • Designed to be source-driven
    • Low switching losses
    • Low effective output capacitance
    • Designed for inductive loads
    • Well matched for low second harmonic when driven by MD2130
Parametrics
Name
Value
BVdsx min (V)
250
RDS
3.5
Vgs(off) min (V)
-1.5
Vgs(off) max (V)
-2.1
Package
DFN-8, TO-252
