Part Number: EV63V67A

EV63V67A - LX34070 Data Acquisition Interface Board


Overview

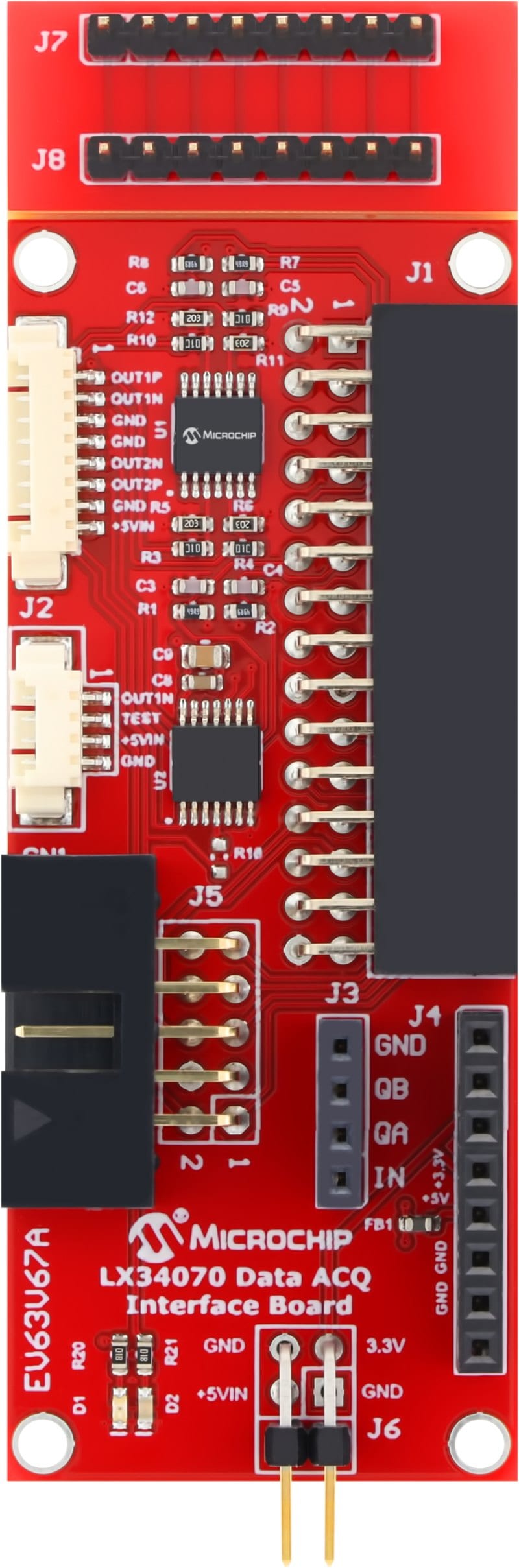

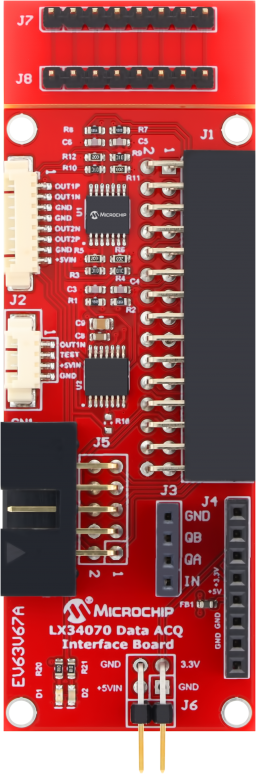

Elevate your high speed inductive position sensor development using with the EV63V67A Data acquisition interface board. This board pairs with the LX34070 90 degree rotary EVB (EV65W60A) along with the PIC32MKMCJ Curiosity Board (DT100113) allowing you to capture fast sine and cosine output signals for sensor evaluation and sensor development to meet your needs.

To get started, connect the the LX34070A Evaluation board (EV65W60A) to the  EV63V67A Data acquisition interface board. Remove the snap off power header at the top of the board. Use the power header to connect the Interface board to the Curiousity board, which is then plugged into your computer. The IPCE software will auto recognize your device. Additional steps to program your Curiosity board are included in the user guide.

To explore more of our inductive sensor products, please visit the Inductive Position Sensor Design Resources page.

Package Contents

-EV63V67A Data Acquisition Interface board

- (1) 4 pin cable

-(1) 8 pin cable

Silicon Products

Product
Title
Product
Title
LX34070 High Speed Inductive Position Sensor with Differential Outputs LX34070 High Speed Inductive Position Sensor with Differential Outputs
LX34070A High Speed Inductive Position Sensor with Differential Outputs LX34070A High Speed Inductive Position Sensor with Differential Outputs
LX34050 Inductive Position Sensor IC LX34050 Inductive Position Sensor IC
