Overview

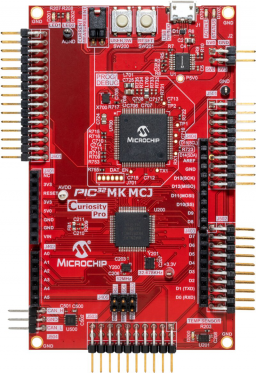

The PIC32MK MCJ Curiosity Pro Development Board includes an integrated programmer and debugger, so no additional hardware is required to get started. Users can expand functionality through Arduino Shields or via the Xplained Pro compatible interface, offering access to all device pins. With or without expansion boards, the PIC32MK MCJ Curiosity Pro Development Board provides the freedom to develop for a variety of applications, including Bluetooth Audio, CAN, Graphics User Interface, Internet of Things (IoT), robotics development, and proof-of-concept designs.
Features:
• PIC32MK0512MCJ MCU, 120Mhz, 512K Flash and 64K RAM
• On-Board Debugger (EDBG)
– Real time Programming & Debugging
– Virtual COM port (VCOM)
– Data Gateway Interface (DGI)
• Xplained pro extension compatible interface
• CAN-FD interface
• User buttons
• User LEDs
• Arduino Uno R3 compatible interface
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| PIC32MK MCJ Curiosity Pro Users Guide | User Guide | Download | ||
| PIC32MK General Purpose and Motor Control (GPG/MCJ) with CAN FD Family | Data Sheets | Download | ||
| PIC32MK MCJ Curiosity Pro Development Board Design Documentation | Board Design Files | Download | ||
| How to Setup MPLAB Harmony v3 Software Development Framework | Tech Brief | PDF | HTML |
