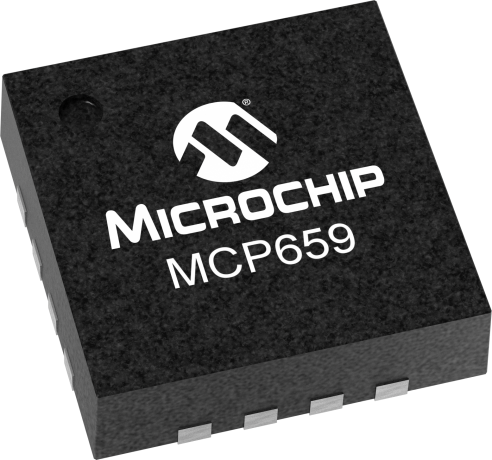

product primary image

MCP659

Status: In Production

Features:

  • mCal Technology: On chip self-calibration
  • 50MHz GBWP
  • High Output Drive Current
  • Rail-to-Rail Output
  • Two Chip Select/Calibration Pins
  • Small 16-pin 4x4 QFN Package
  • AEC-Q100 Grade 1
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The MCP65x family of operational amplifiers feature low offset. At power-up, these op amps are self-calibrated using mCal. Some package options also provide a calibration/chip select pin that supports a low power mode of operation, with offset calibration at the time normal operation is re-started. These amplifiers are optimized for high speed, low noise and distortion, single-supply operation with rail-to-rail output and an input that includes the negative rail. AEC-Q100 Grade 1 qualification is available for this device

Additional Features
    • mCal Technology: On chip self-calibration
    • 50MHz GBWP
    • High Output Drive Current
    • Rail-to-Rail Output
    • Two Chip Select/Calibration Pins
    • Small 16-pin 4x4 QFN Package
    • AEC-Q100 Grade 1
Parametrics
Name
Value
Temp. Range (°C)
-40°C to +125°C
Vos Max (µV)
200
# per Package
4
Iq Typical (µA)
6000
Iq Max (µA)
9000
GBWP (kHz)
50000
Operating Voltage Range (V)
2.5 to 5.5
Device Description
Linear Op Amps
Input Voltage Noise Density (nV/rt(Hz))
7.5
PSRR Min (dB)
61
CMRR Min (dB)
66
Vos/Ta (uV/°C)
2.5
Ib (pA)
6
Aol (dB)
114
PM (deg)
65
Isc (mA)
95
Rail-to-Rail
Out
Unity Gain Stable
Yes
Slew Rate V/uS
30

Documents

Jump to:

Data Sheet

08/07/2014
1887KB

Product Line Card


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MCP659-E/ML
0.041700
0.076923
16
QFN
4x4x0.9mm
Matte Tin
e3
MCP659T-E/ML
0.041700
0.212121
16
QFN
4x4x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
